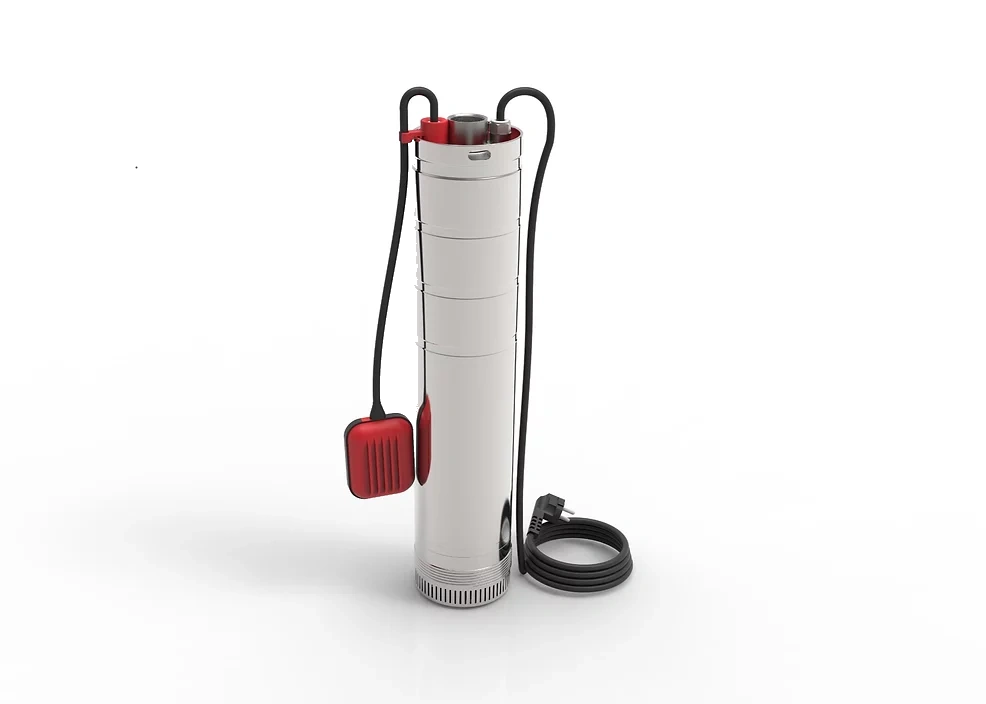

FROG 5” SUBMERSIBLE MONOBLOCK ELECTROPUMPS

5” multi-stage centrifugal submersible electropumps, designed to work in wells or tanks,  suitable to be used in clean water.



 BUILDING FEATURES:

·       Asynchronous motor cooled by pumped liquid

·       All part in contact with water made in AISI 304 stainless steel

·       Techno-polymer impellers and diffusers

·       Single-phase version featuring capacitor and thermal-amperometric protection

·       Removable power cable-connector (differents lengths available)

·       Removable float switch



APPLICATIONS:

·       Domestic

·       Civil

·       Industrial

·       Agricultural



USES:



·       To take water from tanks, collection tanks, watercourses, 5” wells

·       Rainwater tanks

·       Irrigation



Product image

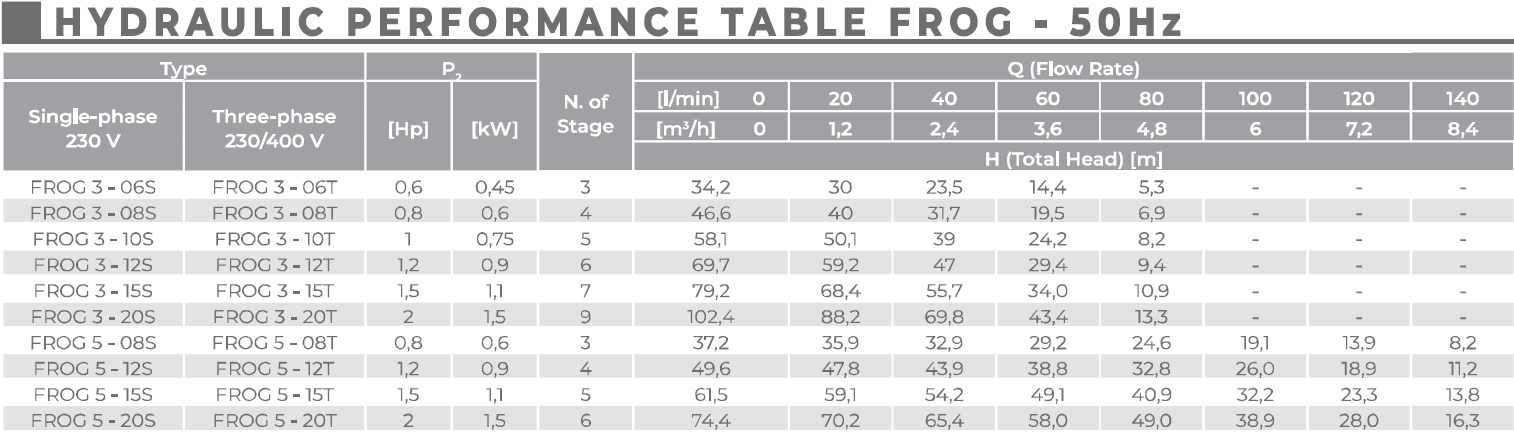

MODELS:

Powers:

>       3 m³/h: from 0,6 Hp to 2 Hp single-phase / three-phase 50 Hz​​

>       5 m³/h: from 0,8 Hp to 2 Hp single-phase / three-phase 50 Hz​​

>       5 m³/h: from 1,2 Hp to 2 Hp single-phase / three-phase 50 Hz​​

Frequency:

>       50 Hz / 60 Hz



Voltage:

>       Single-phase: 230 V / 50 Hz

>       Three-phase: 230;400 V / 50 Hz

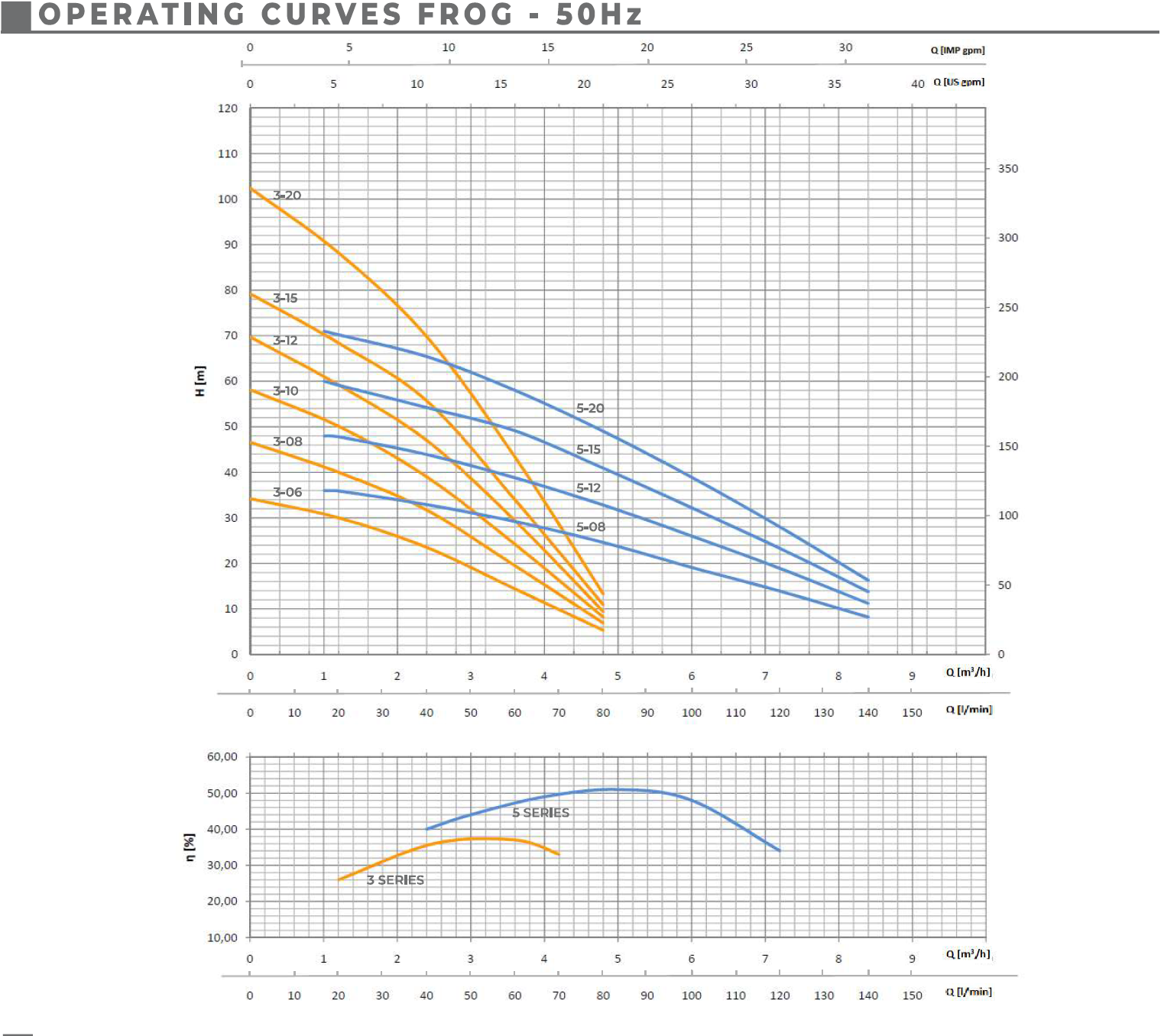

PERFORMANCE RANGE:

>       Flow rate: 140 l/min (8m³/h)

>       Max. head: 110 m



>       OPERATING LIMITS:

>       Max. immersion depth: 40 m

>       Max. pumped liquid temperature: +35°C  (+95°F)

>       Max. amount of sand tolerated in water: 50 g/m³

>       Mounting: vertical and / or horizontal



Degree of protection: IP68

Insulation class: F

Voltage tolerance: ± 10%



Product image

Models
