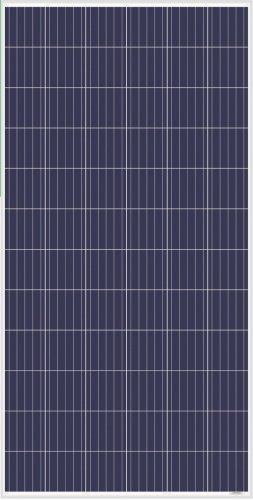

Amerisolar Polycrystalline Solar Panels
Polycrystalline solar panels are made from similar silicon material hence instead of going through the slow and more expensive process of creating a single crystal, molten silicon is just put into a cast and cooled with a seed crystal. By using the casting method, the crystal surrounding the seed isn’t uniform and branches into many, smaller crystals, thus the term “polycrystalline”. The surface has a jumbled look with many variations of blue colour. Amerisolar has developed various types of polycrystalline solar modules..
Amerisolar’s polycrystalline solar panels have the full certifications to guarantee you that you only purchase the best solar panels.
Choose your Polycrystalline Solar Panels
Key Features
> High module conversion efficiency up to 18.44% through innovative five busbar cell technology.
> Low degradation and excellent performance under high temperature and low light conditions.
> Robust aluminum frame ensures the modules to withstand wind loads up to 3600Pa and snow loads up to 5400Pa.
> High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests).
> Potential induced degradation (PID) resistance.
Quality Certificates
> IEC 61215, IEC 61730, UL 1703, IEC 62716, IEC 61701, IEC TS 62804, CE, CQC, ETL(USA), JET(Japan), J-PEC(Japan), KS(South Korea), BIS(India), MCS(UK), CEC(Australia), CSI Eligible(CA-USA), Israel Electric(Israel), InMetro(Brazil), TSE(Turkey)
> ISO 9001:2015: Quality management system
> ISO 14001:2015: Environmental management system
> ISO 45001:2018: Occupational health and safety management system
|
ELECTRICAL CHARACTERISTICS AT STC |
|||||||
|
Maximum Power (Pmax) |
270W |
275W |
280W |
285W |
290W |
295W |
300W |
|
Open Circuit Voltage (VOC) |
38.4V |
38.6V |
38.8V |
39.0V |
39.2V |
39.4V |
39.6V |
|
Short Circuit Current (ISC) |
9.15A |
9.26A |
9.37A |
9.48A |
9.59A |
9.70A |
9.80A |
|
Voltage at Maximum Power (Vmp) |
31.2V |
31.4V |
31.6V |
31.8V |
32.0V |
32.2V |
32.4V |
|
Current at Maximum Power (Imp) |
8.66A |
8.76A |
8.87A |
8.97A |
9.07A |
9.17A |
9.26A |
|
Module Efficiency (%) |
16.60 |
16.90 |
17.21 |
17.52 |
17.83 |
18.13 |
18.44 |
|
Operating Temperature |
-40°C to +85°C |
||||||
|
Maximum System Voltage |
1000V DC/1500V DC |
||||||
|
Fire Resistance Rating |
Type 1(in accordance with UL 1703)/Class C(IEC 61730) |
||||||
|
Maximum Series Fuse Rating |
15A |
||||||
STC: lrradiance 1000W/m2, Cell temperature 25°C, AM1.5; Tolerance of Pmax: 0~+3%; Measurement Tolerance: ±3%
|
ELECTRICAL CHARACTERISTICS AT NOCT |
|||||||
|
Maximum Power (Pmax) |
200W |
204W |
207W |
211W |
215W |
218W |
222W |
|
Open Circuit Voltage (VOC) |
35.3V |
35.5V |
35.7V |
35.9V |
36.1V |
36.3V |
36.5V |
|
Short Circuit Current (ISC) |
7.41A |
7.50A |
7.59A |
7.68A |
7.77A |
7.86A |
7.94A |
|
Voltage at Maximum Power (Vmp) |
28.4V |
28.6V |
28.8V |
29.0V |
29.2V |
29.4V |
29.6V |
|
Current at Maximum Power (Imp) |
7.05A |
7.14A |
7.19A |
7.28A |
7.37A |
7.42A |
7.50A |
NOCT: Irradiance 800W/m2, Ambient temperature 20°C, Wind Speed 1 m/s
Key Features
> High module conversion efficiency up to 18.30% through innovative five busbar cell technology.
> Low degradation and excellent performance under high temperature and low light conditions.
> Robust aluminum frame ensures the modules to withstand wind loads up to 3600Pa and snow loads up to 5400Pa.
> High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests).
> Potential induced degradation (PID) resistance.
Quality Certificates
> IEC 61215, IEC 61730, UL 1703, IEC 62716, IEC 61701, IEC TS 62804, CE, CQC, ETL(USA), JET(Japan), J-PEC(Japan), KS(South Korea), BIS(India), MCS(UK), CEC(Australia), CSI Eligible(CA-USA), Israel Electric(Israel), InMetro(Brazil), TSE(Turkey)
> ISO 9001:2015: Quality management system
> ISO 14001:2015: Environmental management system
> ISO 45001:2018: Occupational health and safety management system
|
ELECTRICAL CHARACTERISTICS AT STC |
|||||||
|
Maximum Power (Pmax) |
325W |
330W |
335W |
340W |
345W |
350W |
355W |
|
Open Circuit Voltage (VOC) |
45.7V |
45.9V |
46.1V |
46.3V |
46.5V |
46.7V |
46.9V |
|
Short Circuit Current (ISC) |
9.28A |
9.36A |
9.44A |
9.52A |
9.60A |
9.68A |
9.76A |
|
Voltage at Maximum Power (Vmp) |
37.1V |
37.3V |
37.5V |
37.7V |
37.9V |
38.1V |
38.3V |
|
Current at Maximum Power (Imp) |
8.77A |
8.85A |
8.94A |
9.02A |
9.11A |
9.19A |
9.27A |
|
Module Efficiency (%) |
16.75 |
17.01 |
17.26 |
17.52 |
17.78 |
18.04 |
18.30 |
|
Operating Temperature |
-40°C to +85°C |
||||||
|
Maximum System Voltage |
1000V DC/1500V DC |
||||||
|
Fire Resistance Rating |
Type 1(in accordance with UL 1703)/Class C(IEC 61730) |
||||||
|
Maximum Series Fuse Rating |
15A |
||||||
STC: lrradiance 1000W/m2, Cell temperature 25°C, AM1.5; Tolerance of Pmax: 0~+3%; Measurement Tolerance: ±3%
|
ELECTRICAL CHARACTERISTICS AT NOCT |
|||||||
|
Maximum Power (Pmax) |
241W |
244W |
248W |
252W |
256W |
259W |
263W |
|
Open Circuit Voltage (VOC) |
42.0V |
42.2V |
42.4V |
42.6V |
42.8V |
43.0V |
43.2V |
|
Short Circuit Current (ISC) |
7.52A |
7.58A |
7.65A |
7.71A |
7.78A |
7.84A |
7.91A |
|
Voltage at Maximum Power (Vmp) |
33.7V |
33.9V |
34.1V |
34.3V |
34.5V |
34.7V |
34.9V |
|
Current at Maximum Power (Imp) |
7.16A |
7.20A |
7.28A |
7.35A |
7.42A |
7.47A |
7.54A |
NOCT: Irradiance 800W/m2, Ambient temperature 20°C, Wind Speed 1 m/s
