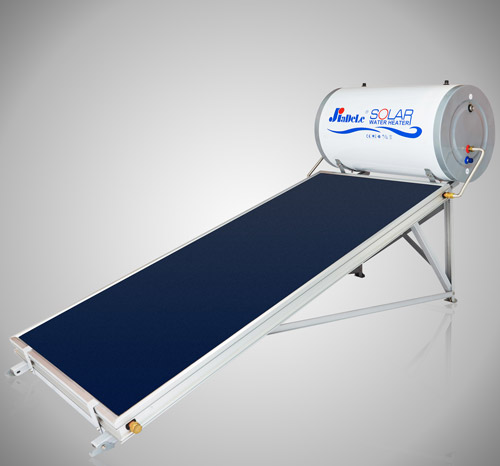

Pressurized Flat Solar Water Heater

High performance, easy installation, natural circulation to avoid maintaining, long service life, being changed according to user requirements


Changing the traditional solar energy which using vacuum tube absorb the heat. This model uses a unique blue coating absorption of flat plate, compared with other heat absorbing material,blue coating's efficiency can reach 95%, and in the heat absorbing,flat plate reserved for joint and be convenient for customers' demand. Pressurized design makes the pressure capacity enhance, the water pressure is the same as the municipal water supply , the strong water power combine with the perfect building, the overall effect is shown.

Product Information

(Technical   Specification)

Tank





Model

JDL-PGHP150

JDL-PGHP200

JDL-PGHP300

Circulation Type

(Closed)

Tank Capacity

150L

200L

300L

External Dimension

Φ580x1000

Φ580x1250

Φ580x1750

Outer Tank Material

Color coating galvanized steel

Inner Tank Material

SUS 304 stainless steel/1.2mm

Working Pressure

0.6Mpa

Electric Heater

1.5kw/2.0kw

2.0kw/3.0kw

Flat Plat Solar Collector



















Model

JDL-PG2.0

JDL-PG2.5

JDL-PG2.0

Size

2000x1000x80

2000x1250x80

2000x1000x80

otal Area

2.0m2x1pc

2.5m2x1pc

2.0m2x2pc

Absorber Material

Aluminum Plate

Absorber coating

Black Chrome/Blue Coating

Header pipe

Copper/Φ22x0.6

Riser Pipe

Copper/Φ10x0.5

Riser Pipe Quantity

7 pcs

9pcs

7pcs

Welding

Laser Welding

Cover Material

Low iron tempered textured glass

Frame Material

Anodised aluminum alloy

Insulation Material

Fibre Glass

Piping connector size

Φ22

Frame

Material

Galvanized

Model

A:  Flat Roof B: Inclined Roof

Accessory



Circulation Pipe Material

304 Stainless Steel corrugated pipeΦ20mm)

Connection Fittings

Φ22mm x G3/4'

T/P   Pressure relief valve

0.6Mpa/90

Weight

Empty

70

85

130

Filled

220

285

430
