Split Pressurized Solar Water Heater

High integration,flexible installation and perfect combination with the building

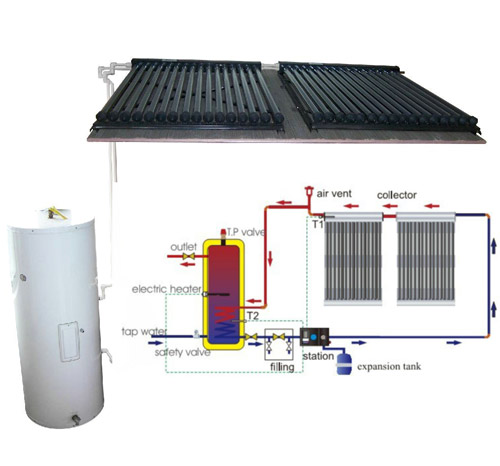

Works with high pressure. Pump is used to circulate the heat.Strong water flow meets the demand of taking a massage shower.The heater collector and the water tank is separated that makes the system can combine with bay window, limitation of traditional installation methods. Balcony and building perfectly, which breaks the limitation of traditional installation.The heater collector can use flat panel or pressurized solar collector.

Product Information

Type

Tank   specification

Out Tank   Diameter *height

Inner Tank   diameter

Inner Tank   Material

Heat Exchange   Area

JDL-100 One Coil

100L

Φ480×1000

Φ380

SUS304×δ1.2mm/SUS316×δ1.2mm

0.4   m²

JDL-150 One Coil

150L

Φ480×1450

Φ380

SUS304×δ1.2mm/SUS316×δ1.2mm

0.55   m²

JDL-200 One Coil

200L

Φ570×1270

Φ480

SUS304×δ1.2mm/SUS316×δ1.2mm

0.75   m²

JDL-250 One Coil

250L

Φ570×1520

Φ480

SUS304×δ1.2mm/SUS316×δ1.2mm

0.93   m²

JDL-300 One Coil

300L

Φ570×1800

Φ480

SUS304×δ1.2mm/SUS316×δ1.2mm

1.1   m²

JDL-400 One Coil

400L

Φ700×1600

Φ580

SUS304×δ1.5mm/SUS316×δ1.5mm

1.2   m²

JDL-500 One Coil

500L

Φ700×2000

Φ580

SUS304×δ1.5mm/SUS316×δ1.5mm

1.48   m²

JDL-150 Two Coil

150L

Φ480×1450

Φ380

SUS304×δ1.2mm/SUS316×δ1.2mm

0.35m²/0.5m²

JDL-200 Two Coil

200L

Φ570×1270

Φ480

SUS304×δ1.2mm/SUS316×δ1.2mm

0.4m²/0.7m²

JDL-250 Two Coil

250L

Φ570×1520

Φ480

SUS304×δ1.2mm/SUS316×δ1.2mm

0.55m²/0.88m²

JDL-300 Two Coil

300L

Φ570×1800

Φ480

SUS304×δ1.2mm/SUS316×δ1.2mm

0.6m²/0.95m²

JDL-400 Two Coil

400L

Φ700×1600

Φ580

SUS304×δ1.5mm/SUS316×δ1.5mm

0.7m²/1.1m²

JDL-500 Two Coil

500L

Φ700×2000

Φ580

SUS304×δ1.5mm/SUS316×δ1.5mm

0.8   m²/1.4m²
