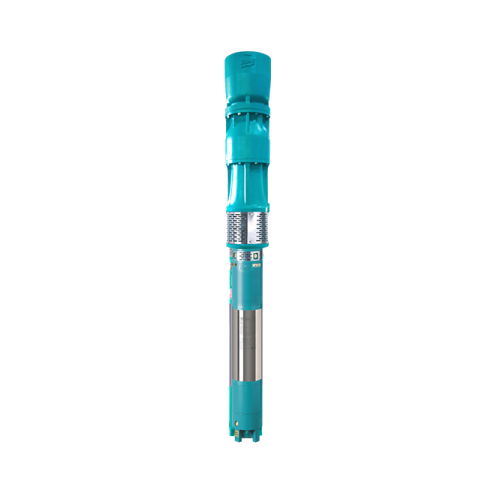

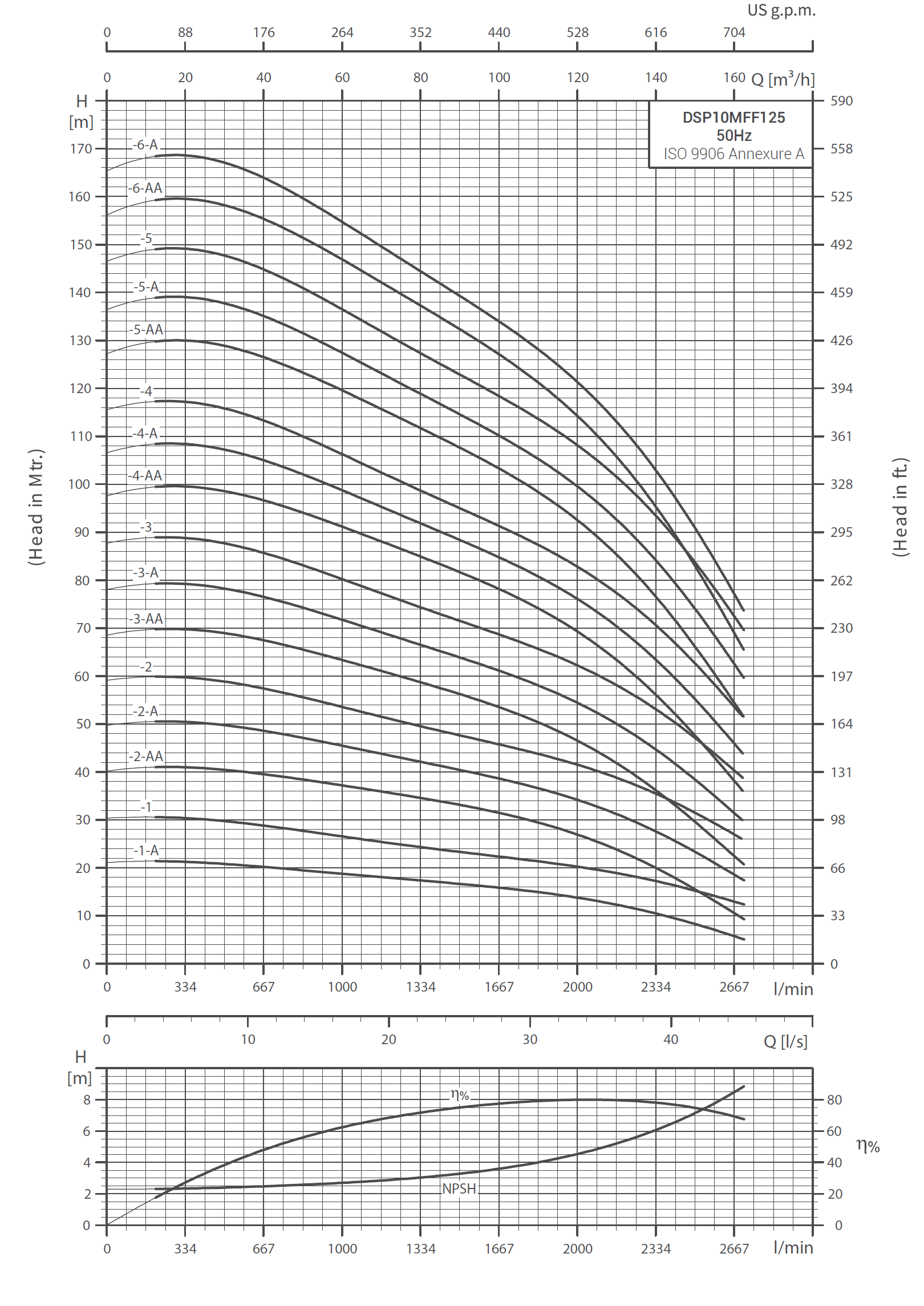

DSP10MFF125, 50HZ SERIES

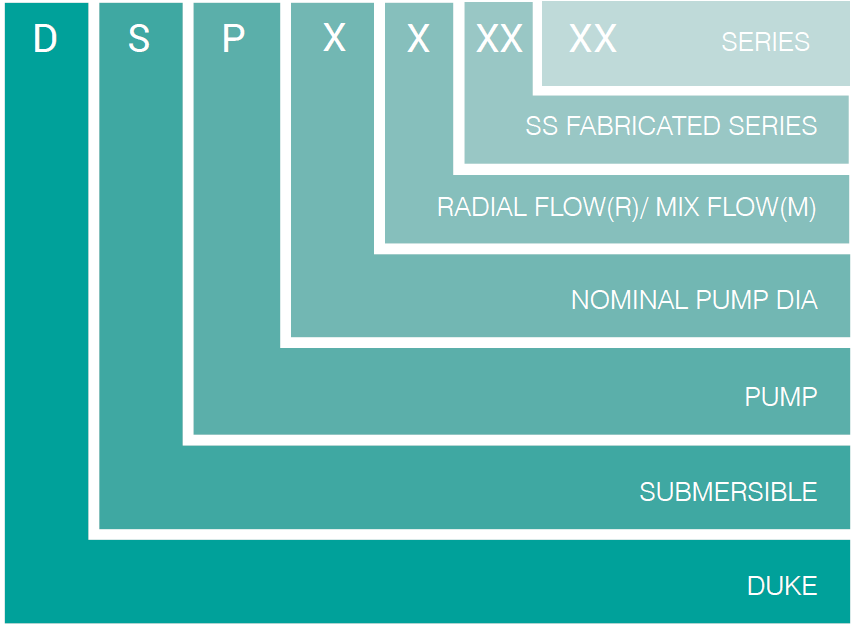

MODEL IDENTIFICATION CODE
NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)
|
kW |
HP |
Stage |
Motor Joinings |
Outlet Size |
|
Discharge |
|||||
|
m3/h |
0 |
48 |
96 |
126 |
144 |
156 |
|||||
|
Ipm |
0 |
800 |
1600 |
2100 |
2400 |
2600 |
|||||
|
7.5 |
10 |
1-A |
V-6 |
6"BSP |
Head in Mtrs. |
21 |
20 |
16 |
13 |
10 |
7 |
|
11 |
15 |
1 |
V-6 |
6"BSP |
28 |
27 |
23 |
20 |
17 |
14 |
|
|
13 |
17.5 |
2-AA |
V-6 |
6"BSP |
44 |
39 |
32 |
26 |
19 |
13 |
|
|
18.5 |
25 |
2-A |
V-6 |
6"BSP |
50 |
47 |
39 |
33 |
27 |
21 |
|
|
22 |
30 |
2 |
V-6 |
6"BSP |
57 |
55 |
46 |
40 |
34 |
29 |
|
|
22 |
30 |
3-AA |
V-6 |
6"BSP |
71 |
67 |
55 |
46 |
36 |
28 |
|
|
26 |
35 |
3-A |
V-6 |
6"BSP |
78 |
75 |
62 |
53 |
44 |
36 |
|
|
30 |
40 |
3 |
V-8 |
6"BSP |
80 |
83 |
69 |
60 |
51 |
44 |
|
|
37 |
50 |
4-AA |
V-8 |
6"BSP |
99 |
94 |
78 |
66 |
53 |
42 |
|
|
37 |
50 |
4-A |
V-8 |
6"BSP |
107 |
103 |
85 |
73 |
61 |
51 |
|
|
37 |
50 |
4 |
V-8 |
6"BSP |
114 |
111 |
92 |
80 |
68 |
59 |
|
|
45 |
60 |
5-AA |
V-8 |
6"BSP |
128 |
122 |
101 |
86 |
70 |
57 |
|
|
45 |
60 |
5-A |
V-8 |
6"BSP |
135 |
131 |
108 |
93 |
78 |
66 |
|
|
55 |
75 |
5 |
V-8 |
6"BSP |
143 |
139 |
115 |
100 |
85 |
74 |
|
|
55 |
75 |
6-AA |
V-8 |
6"BSP |
150 |
150 |
124 |
106 |
87 |
72 |
|
|
55 |
75 |
6-A |
V-8 |
6"BSP |
164 |
158 |
131 |
113 |
95 |
80 |
|
|
63 |
90 |
6 |
V-8 |
6"BSP |
171 |
160 |
138 |
120 |
102 |
88 |
|
|
63 |
90 |
7-AA |
V-8 |
6"BSP |
185 |
178 |
147 |
126 |
104 |
87 |
|
|
63 |
90 |
7-A |
V-8 |
6"BSP |
192 |
180 |
154 |
133 |
112 |
95 |
|
|
75 |
100 |
7 |
V-8 |
6"BSP |
200 |
194 |
161 |
140 |
119 |
103 |
|
|
75 |
100 |
8-AA |
V-8 |
6"BSP |
213 |
205 |
170 |
146 |
121 |
101 |
|
|
75 |
100 |
8-A |
V-8 |
6"BSP |
221 |
213 |
177 |
153 |
129 |
109 |
|
|
75 |
100 |
8 |
V-8 |
6"BSP |
228 |
222 |
184 |
160 |
136 |
118 |
|
|
93 |
125 |
9-AA |
V-8 |
6"BSP |
242 |
233 |
193 |
166 |
138 |
116 |
|
|
93 |
125 |
9-A |
V-8 |
6"BSP |
249 |
241 |
200 |
173 |
146 |
124 |
|
|
93 |
125 |
9 |
V-8 |
6"BSP |
257 |
249 |
207 |
180 |
153 |
132 |
|
|
93 |
125 |
10-AA |
V-8 |
6"BSP |
270 |
261 |
216 |
186 |
155 |
131 |
|
|
93 |
125 |
10-A |
V-8 |
6"BSP |
278 |
269 |
223 |
193 |
163 |
139 |
|
|
93 |
125 |
10 |
V-8 |
6"BSP |
285 |
277 |
230 |
200 |
170 |
147 |
|
|
110 |
150 |
11 |
V-10 |
6"BSP |
314 |
305 |
253 |
220 |
187 |
162 |
|
|
130 |
175 |
12 |
V-10 |
6"BSP |
342 |
332 |
276 |
240 |
204 |
176 |
|
|
130 |
175 |
13 |
V-10 |
6"BSP |
371 |
360 |
299 |
260 |
221 |
191 |
|
|
150 |
200 |
14 |
V-10 |
6"BSP |
399 |
388 |
322 |
280 |
238 |
206 |
|
|
150 |
200 |
15 |
V-10 |
6"BSP |
428 |
416 |
345 |
300 |
255 |
221 |
|
|
185 |
250 |
16 |
V-10 |
6"BSP |
456 |
443 |
368 |
320 |
272 |
235 |
|
|
185 |
250 |
17 |
V-10 |
6"BSP |
485 |
471 |
391 |
340 |
289 |
250 |
|
|
Model Name |
Specification |
|||
|
D (mm) |
L (mm) |
Pump Weight Kg. |
Weight (incl. pkg.) Kg. |
|
|
DSP10MFF125-1-A |
211 |
651 |
70 |
74 |
|
DSP10MFF125-1 |
211 |
651 |
79 |
83 |
|
DSP10MFF125-2-AA |
211 |
807 |
88 |
92 |
|
DSP10MFF125-2-A |
211 |
807 |
97 |
101 |
|
DSP10MFF125-2 |
211 |
807 |
103 |
107 |
|
DSP10MFF125-3-AA |
211 |
963 |
109 |
113 |
|
DSP10MFF125-3-A |
211 |
963 |
115 |
119 |
|
DSP10MFF125-3 |
211 |
963 |
123 |
127 |
|
DSP10MFF125-4-AA |
211 |
1119 |
176 |
180 |
|
DSP10MFF 125-4-A |
211 |
1119 |
176 |
180 |
|
DSP10MFF125-4 |
213 |
1119 |
176 |
180 |
|
DSP10MFF125-5-AA |
213 |
1275 |
236 |
240 |
|
DSP10MFF125-5-A |
213 |
1275 |
236 |
240 |
|
DSP10MFF125-5 |
213 |
1275 |
251 |
255 |
|
DSP10MFF125-6-AA |
213 |
1431 |
257 |
261 |
|
DSP10MFF125-6-A |
213 |
1431 |
257 |
261 |
|
DSP10MFF125-6 |
218 |
1431 |
283 |
287 |
|
DSP10MFF125-7-AA |
218 |
1587 |
289 |
293 |
|
DSP10MFF125-7-A |
218 |
1587 |
289 |
293 |
|
DSP10MFF125-7 |
218 |
1587 |
308 |
312 |
|
DSP10MFF125-8-AA |
218 |
1743 |
314 |
318 |
|
DSP10MFF125-8-A |
218 |
1743 |
314 |
318 |
|
DSP10MFF125-8 |
218 |
1743 |
314 |
318 |
|
DSP10MFF125-9-AA |
218 |
1899 |
366 |
370 |
|
DSP10MFF125-9-A |
218 |
1899 |
366 |
370 |
|
DSP10MFF125-9 |
218 |
1899 |
366 |
370 |
|
DSP10MFF125-10-AA |
218 |
2055 |
372 |
376 |
|
DSP10MFF125-10-A |
218 |
2055 |
372 |
376 |
|
DSP10MFF125-10 |
218 |
2055 |
372 |
376 |
|
DSP10MFF125-11 |
218 |
2507 |
438 |
442 |
|
DSP10MFF125-12 |
237 |
2714 |
556 |
560 |
|
DSP10MFF125-13 |
237 |
2870 |
562 |
566 |
|
DSP10MFF125-14 |
237 |
3025 |
633 |
637 |
|
DSP10MFF125-15 |
237 |
3181 |
639 |
643 |
|
DSP10MFF125-16 |
237 |
3336 |
685 |
689 |
|
DSP10MFF125-17 |
237 |
3492 |
691 |
695 |
D: Maximum Diameter With Single Cable Guard
