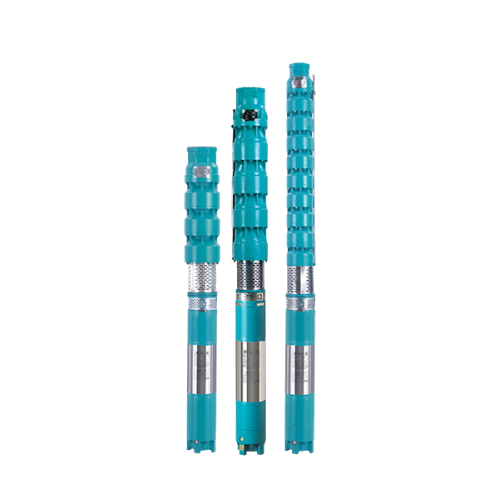

Duke Sub 6"

DSP6MFF09, 50HZ SERIES

Product image

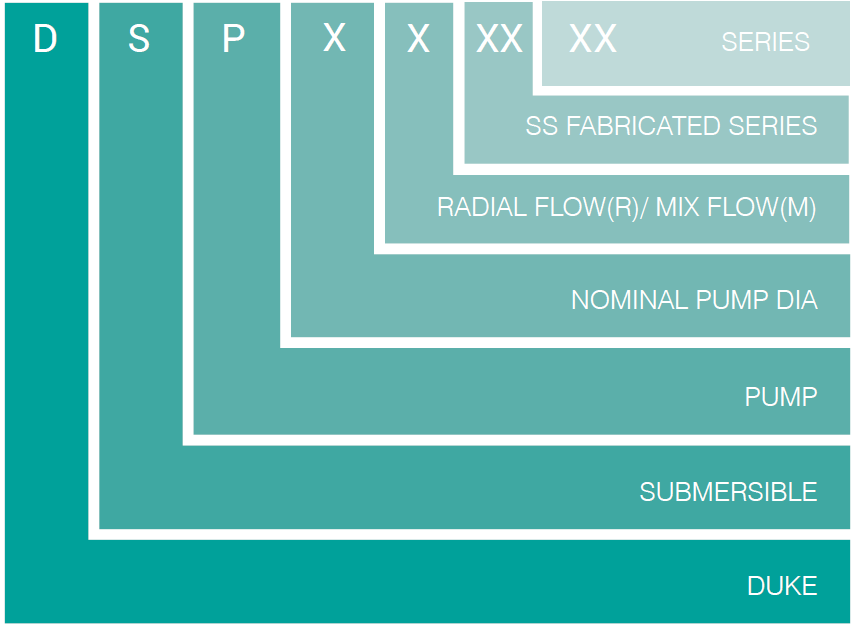

MODEL IDENTIFICATION CODE

Product image

NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)

Product image

Product image

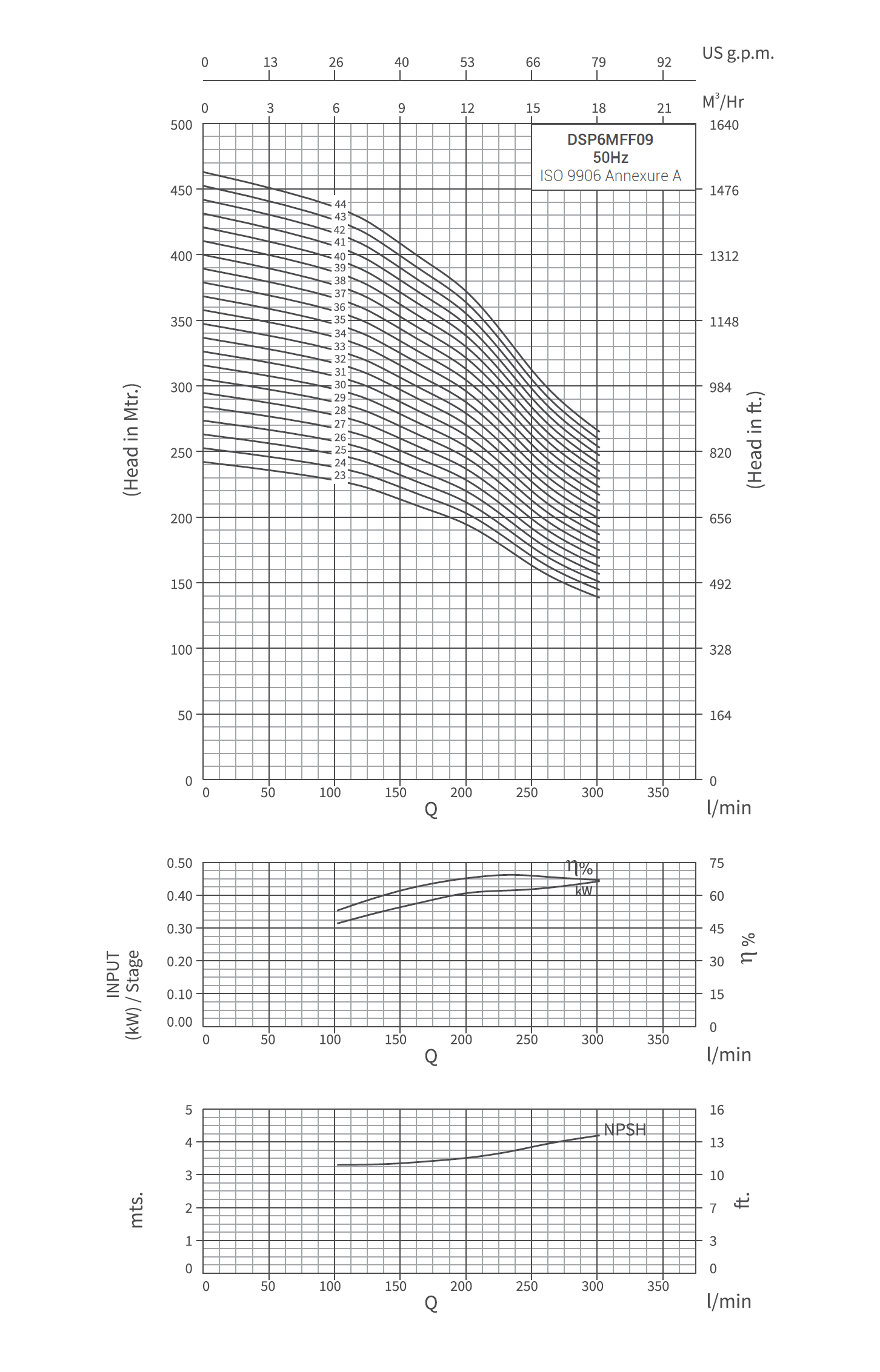

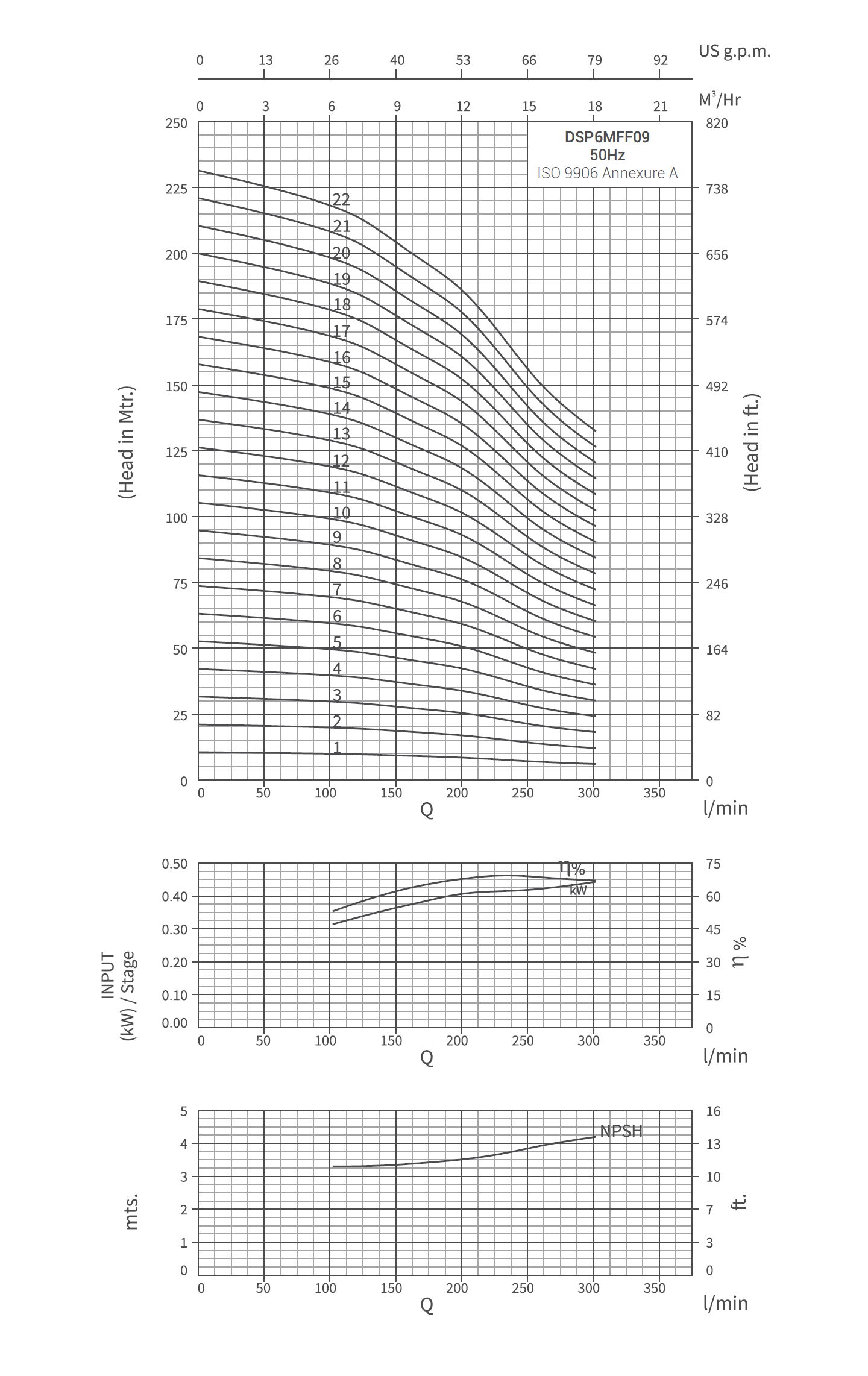

kW	HP	Stage	Motor Joinings	Outlet Size		Discharge
					m3/h	0	6	12	14	15
					Ipm	0	100	150	200	250
0.55	0.75	1	V-6	2"BSP	Head in Mtrs.	10	9	8	7	6
0.75	1	2	V-6	2"BSP		21	20	18	15	12
1.5	2	3	V-6	2"BSP		32	29	26	23	19
2.2	3	4	V-6	2"BSP		42	39	35	30	25
2.2	3	5	V-6	2"BSP		53	49	44	38	31
3	4	6	V-6	2"BSP		63	59	53	45	37
3	4	7	V-6	2"BSP		74	69	62	53	43
37	5	8	V-6	2"BSP		84	78	70	60	50
3.7	5	9	V-6	2"BSP		95	88	79	68	56
4.5	6	10	V-6	2"BSP		105	98	88	75	62
5.5	7.5	11	V-6	2"BSP		116	108	97	83	68
5.5	7.5	12	V-6	2"BSP		126	118	106	90	74
5.5	7.5	13	V-6	2"BSP		137	127	114	98	81
7.5	10	14	V-6	2"BSP		147	137	123	105	87
7.5	10	15	V-6	2"BSP		158	147	132	113	93
7.5	10	16	V-6	2"BSP		168	157	141	120	99
7.5	10	17	V-6	2"BSP		179	167	150	128	105
7.5	10	18	V-6	2"BSP		189	176	158	135	112
9.3	12.5	19	V-6	2"BSP		200	186	167	143	118
9.3	12.5	20	V-6	2"BSP		210	196	176	150	124
9.3	12.5	21	V-6	2"BSP		221	206	185	158	130
9.3	12.5	22	V-6	2"BSP		231	216	194	165	136
11	15	23	V-6	2"BSP		242	225	202	173	143
11	15	24	V-6	2"BSP		252	235	211	180	149
11	15	25	V-6	2"BSP		263	245	220	188	155
11	15	26	V-6	2"BSP		273	255	229	195	161
13	17.5	27	V-6	2"BSP		284	265	238	203	167
13	17.5	28	V-6	2"BSP		294	274	246	210	174
13	17.5	29	V-6	2"BSP		305	284	255	218	180
13	17.5	30	V-6	2"BSP		315	294	264	225	186
13	17.5	31	V-6	2"BSP		326	304	273	233	192
15	20	32	V-6	2"BSP		336	314	282	240	198
15	20	33	V-6	2"BSP		347	323	290	248	205
15	20	34	V-6	2"BSP		357	333	299	255	211
15	20	35	V-6	2"BSP		368	343	308	263	217
15	20	36	V-6	2"BSP		378	353	317	270	223
18.5	25	37	V-6	2"BSP		389	363	326	278	229
18.5	25	38	V-6	2"BSP		399	372	334	285	236
18.5	25	39	V-6	2"BSP		410	382	343	293	242
18.5	25	40	V-6	2"BSP		420	392	352	300	248
18.5	25	41	V-6	2"BSP		431	402	361	308	254
18.5	25	42	V-6	2"BSP		441	412	370	315	260
22	30	43	V-8	2”BSP		451	423	379	322	266
22	30	44	V-8	2”BSP		461	433	388	329	272

Product image

Model Name	Specification
Model Name	D (mm)	L (mm)	Pump Weight Kg.	Weight (incl. pkg.) Kg.
DSP6MFF09 -1	144	331	8	10
DSP6MFF09 - 2	144	392	9	11
DSP6MFF09 - 3	144	452	10	12
DSP6MFF09 - 4	144	513	12	14
DSP6MFF09 - 5	144	573	13	15
DSP6MFF09 - 6	144	634	14	16
DSP6MFF09 - 7	144	694	15	17
DSP6MFF09 - 8	144	755	17	19
DSP6MFF09 - 9	144	815	18	20
DSP6MFF09 - 10	144	876	19	21
DSP6MFF09 - 11	144	936	20	23
DSP6MFF09 - 12	144	997	22	24
DSP6MFF09 - 13	144	1057	23	25
DSP6MFF09 -14	144	1118	24	26
DSP6MFF09 -15	144	1178	25	28
DSP6MFF09 -16	144	1239	26	29
DSP6MFF09 -17	144	1299	28	31
DSP6MFF09 -18	144	1360	29	32
DSP6MFF09 -19	144	1420	30	33
DSP6MFF09 - 20	144	1481	31	34
DSP6MFF09 - 21	144	1541	33	36
DSP6MFF09 - 22	144	1602	34	37
DSP6MFF09 - 23	144	1662	35	39
DSP6MFF09 - 24	144	1723	36	40
DSP6MFF09 - 25	144	1783	38	41
DSP6MFF09 - 26	144	1844	39	42
DSP6MFF09 - 27	144	1904	40	43
DSP6MFF09 - 28	144	1965	41	45
DSP6MFF09 - 29	144	2025	42	46
DSP6MFF09 - 30	144	2086	44	47
DSP6MFF09 - 31	144	2146	45	49
DSP6MFF09 - 32	144	2207	46	50
DSP6MFF09 - 33	144	2267	47	51
DSP6MFF09 - 34	144	2328	49	53
DSP6MFF09 - 35	144	2388	50	54
DSP6MFF09 - 36	144	2449	51	55
DSP6MFF09 - 37	144	2509	52	56
DSP6MFF09 - 38	144	2570	53	57
DSP6MFF09 - 39	144	2630	55	59
DSP6MFF09 - 40	144	2691	56	60
DSP6MFF09 - 41	144	2751	57	62
DSP6MFF09 - 42	144	2812	58	63
DSP6MFF09 - 43	144	2872	60	64
DSP6MFF09 - 44	144	2933	61	65

G: Available Outlet Size BSP 2.5" D: With Cable Guard

DP9 -01 to DP9 -44 Pumps Are Also Available In 4" Joining
