DSP4RFF02, 50HZ SERIES

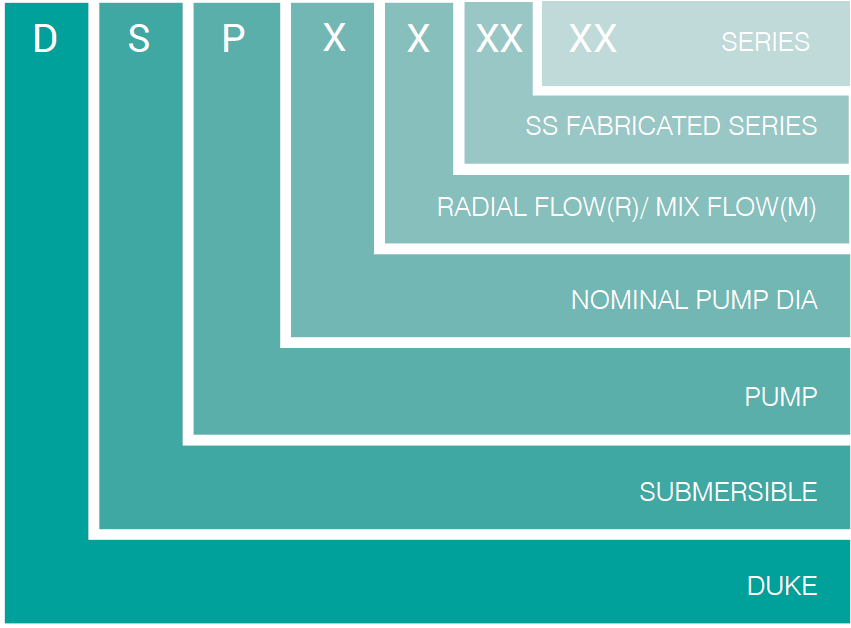

MODEL IDENTIFICATION CODE
NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)
|
kW |
HP |
Stage |
Motor Joinings |
Outlet Size |
|
Discharge |
|||||
|
m3/h |
0 |
1 |
1.4 |
2 |
2.4 |
2.7 |
|||||
|
lpm |
0 |
17 |
23 |
33 |
40 |
45 |
|||||
|
0.37 |
0.5 |
6 |
V-4 |
1½" |

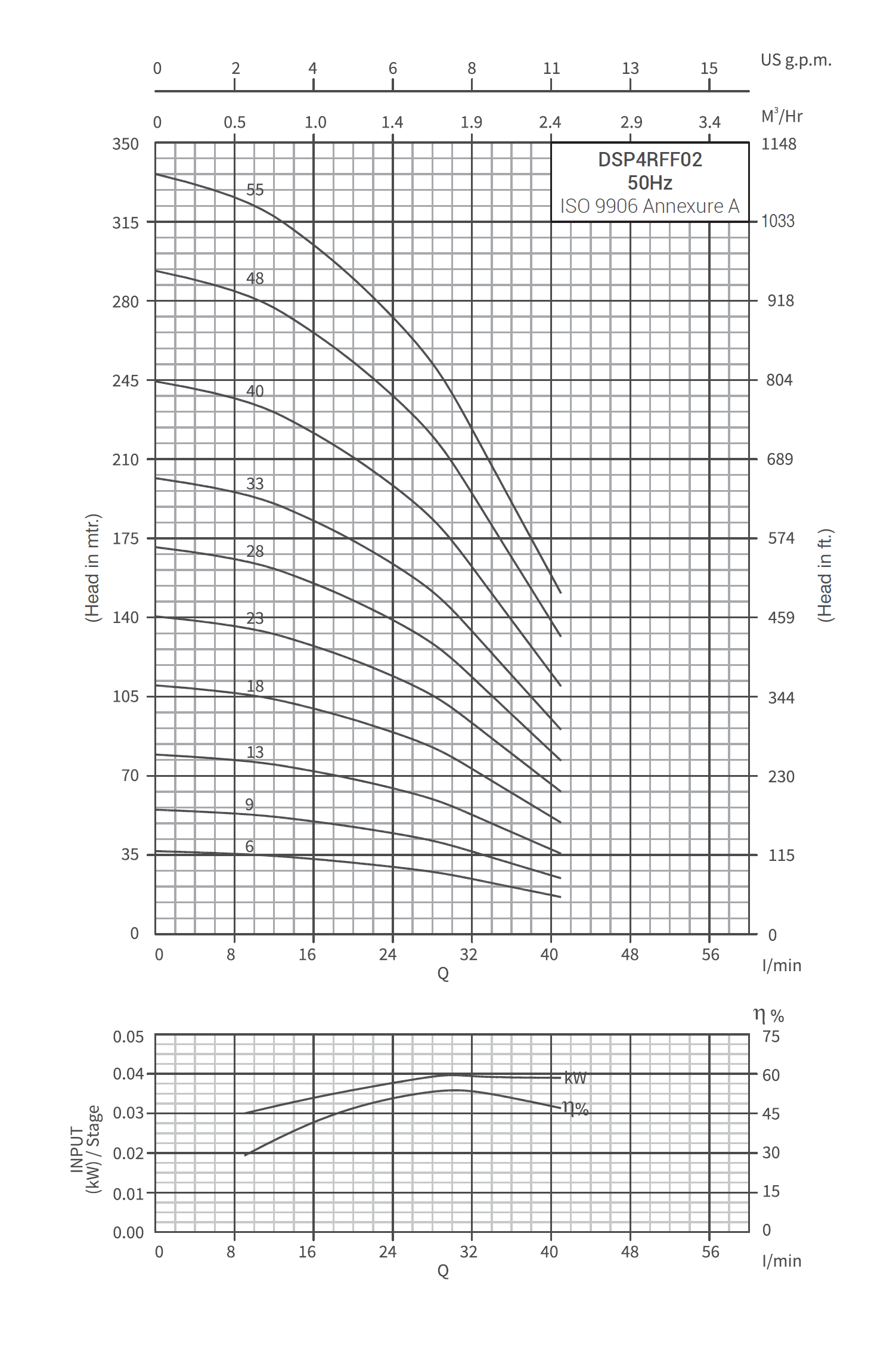

Head in Mtrs. |
35 |
31 |
29 |
23 |
14 |
8 |
|
0.37 |
0.5 |
9 |
V-4 |
1½" |
52 |
46 |
43 |
35 |
22 |
12 |
|
|
0.55 |
0.75 |
13 |
V-4 |
1½" |
75 |
67 |
62 |
51 |
31 |
17 |
|
|
0.75 |
1 |
18 |
V-4 |
1½" |
104 |
93 |
86 |
70 |
43 |
23 |
|
|
1.1 |
1.5 |
23 |
V-4 |
1½" |
133 |
118 |
109 |
90 |
55 |
30 |
|
|
1.5 |
2 |
28 |
V-4 |
1½" |
162 |
144 |
133 |
109 |
67 |
36 |
|
|
1.5 |
2 |
33 |
V-4 |
1½" |
191 |
170 |
157 |
129 |
79 |
43 |
|
|
2.2 |
3 |
40 |
V-4 |
1½" |
232 |
206 |
190 |
156 |
96 |
52 |
|
|
2.2 |
3 |
48 |
V-4 |
1½" |
278 |
247 |
228 |
187 |
115 |
62 |
|
|
3 |
4 |
55 |
V-4 |
1½" |
319 |
283 |
261 |
214 |
131 |
71 |
|
Model Name |
Specification |
|||
|
D (mm) |
L (mm) |
Pump Weight Kg. |
Weight (incl. pkg.) Kg. |
|
|
DSP4RFF02 -06 |
98 |
280 |
3.2 |
3.8 |
|
DSP4RFF02 -09 |
98 |
343 |
4.2 |
5.1 |
|
DSP4RFF02 -13 |
98 |
427 |
5.4 |
6.7 |
|
DSP4RFF02 -18 |
98 |
532 |
7.2 |
9.0 |
|
DSP4RFF02 -23 |
98 |
668 |
8.9 |
11.2 |
|
DSP4RFF02 -28 |
98 |
773 |
10.6 |
13.4 |
|
DSP4RFF02 -33 |
98 |
878 |
12.2 |
15.5 |
|
DSP4RFF02 -40 |
98 |
1097 |
13.0 |
17.0 |
|
DSP4RFF02 -48 |
98 |
1296 |
14.6 |
19.44 |
|
DSP4RFF02 -55 |
98 |
1443 |
16.2 |
21.7 |
G: Available Outlet Size 1.25" BSP
D: With Cable Guard DP2 3-75 and DP4 4-90 pump available in 4" Joining mounted sleeve.
