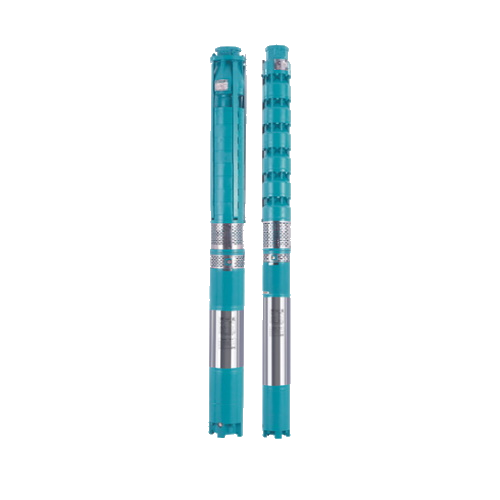

Duke Sub 8"

DSP8MFF77, 50HZ SERIES

Product image

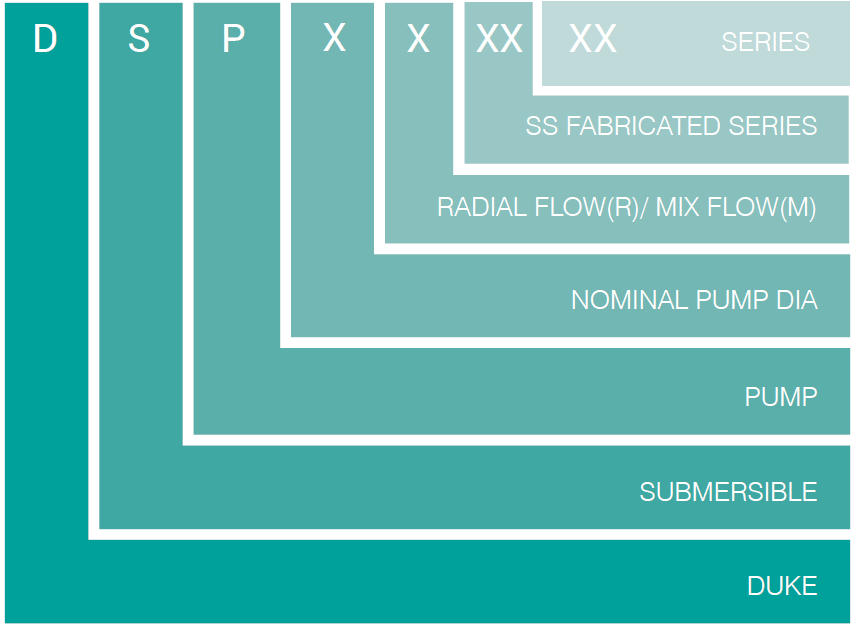

MODEL IDENTIFICATION CODE

Product image

NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)

Product image

Product image

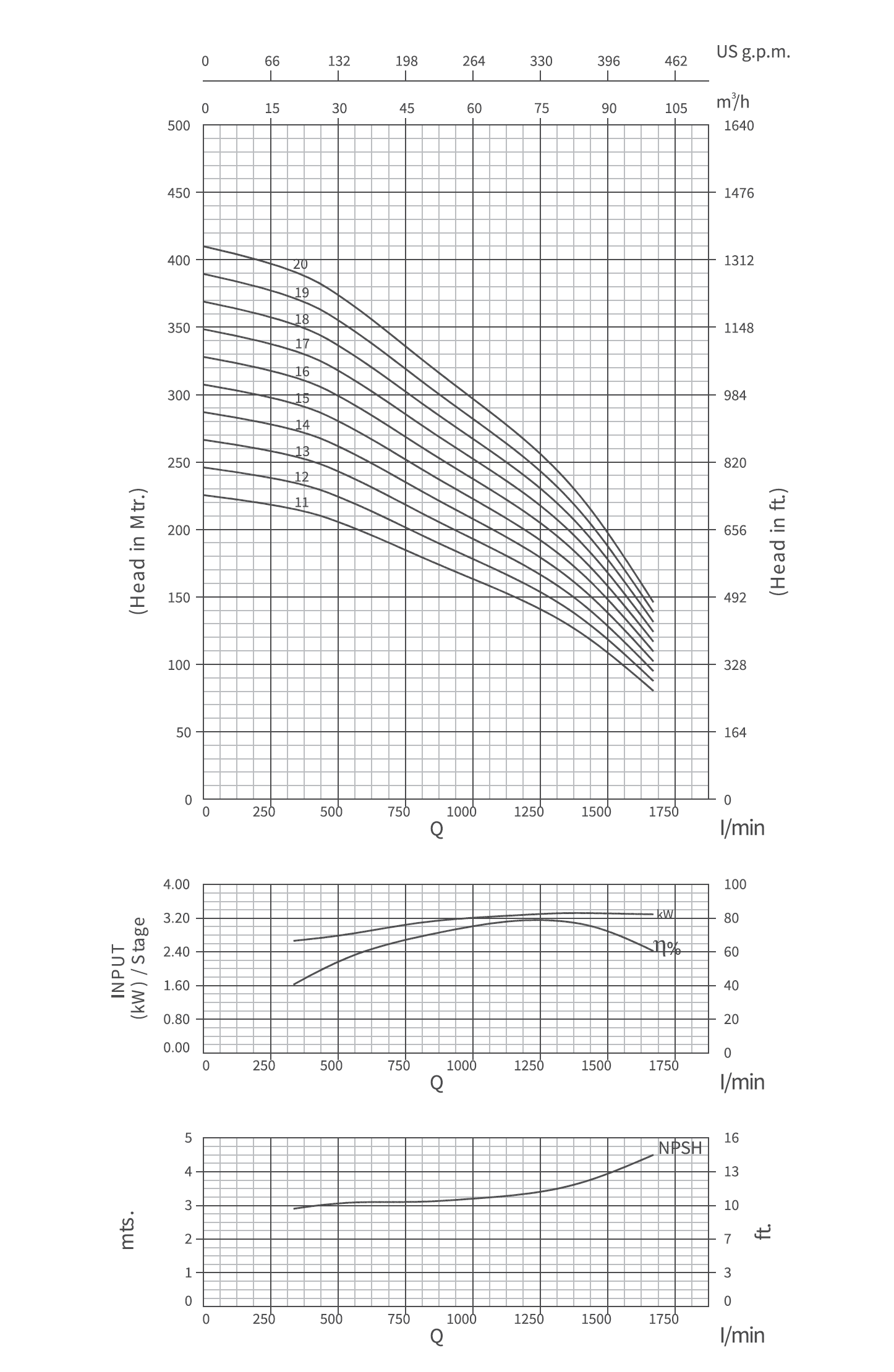

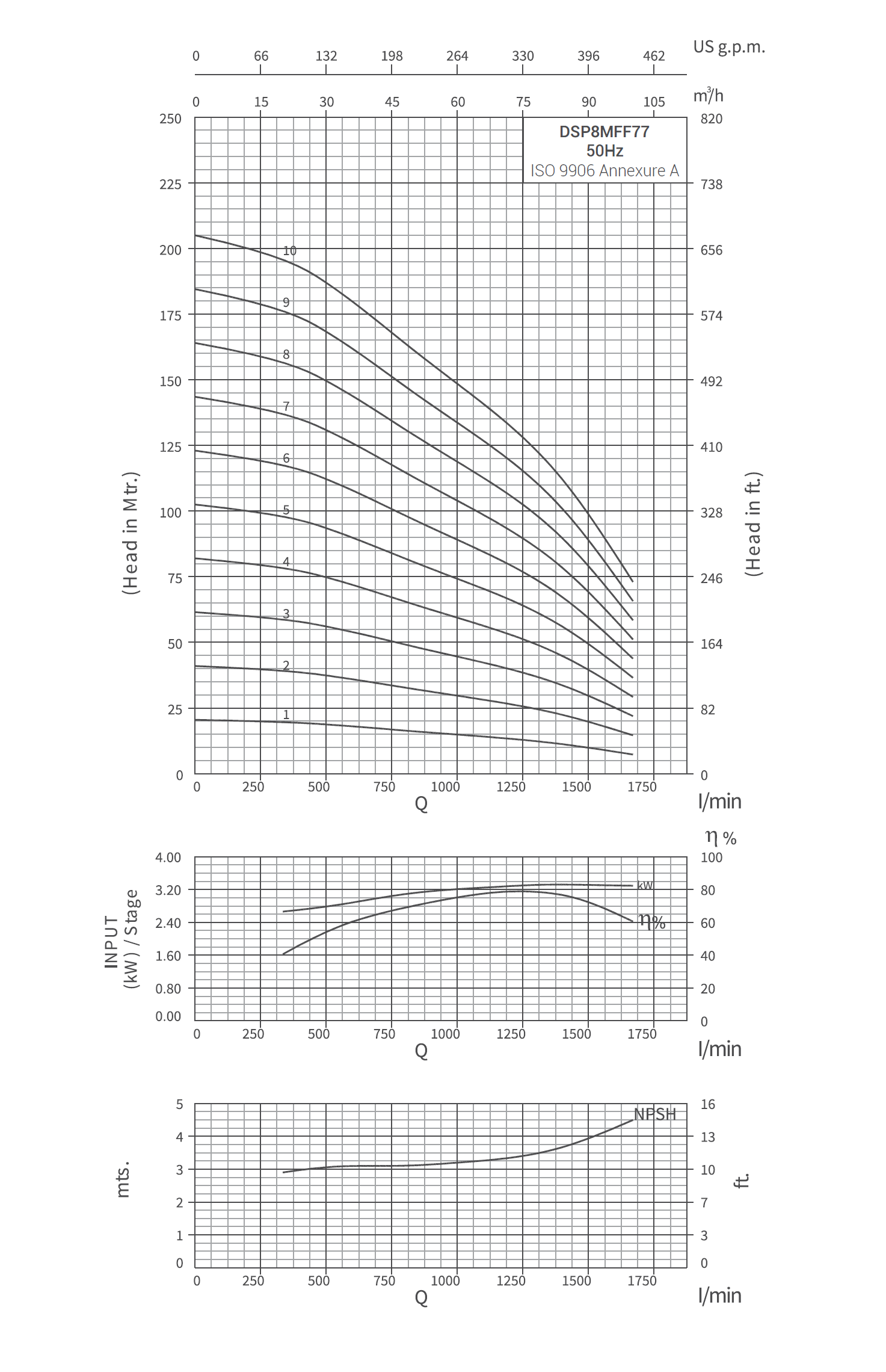

kW	HP	Stage	Motor Joinings	Outlet Size		Discharge
					m3/h	0	48	60	72	84	96
					Ipm	0	800	1000	1200	1400	1600
5.5	7.5	1	V-6	5"BSP	Head in Mtrs.	20	15	14	12	10	7
5.5	7.5	2-B	V-6	5"BSP		33	29	25	19	17	15
7.5	10	2	V-8	5"BSP		40	32	29	26	22	16
9.3	12.5	3	V-8	5"BSP		53	41	37	32	26	16
11	15	3-B	V-8	5"BSP		60	48	43	38	32	23
13	17.5	4-B	V-8	5"BSP		73	57	51	44	36	23
15	20	4	V-8	5"BSP		80	64	58	51	43	31
18.5	25	5	V-8	5"BSP		100	80	72	64	54	39
22	30	6	V-8	5"BSP		120	95	86	77	65	47
26	35	7	V-8	5"BSP		140	111	101	90	76	55
26	35	8-B	V-8	5"BSP		153	120	109	96	80	55
30	40	8	V-8	5"BSP		160	127	115	102	86	62
30	40	9	V-8	5"BSP		180	143	130	115	97	70
37	50	10	V-8	5"BSP		200	159	144	128	108	78
37	50	11	V-8	5"BSP		220	175	158	141	119	86
45	60	12	V-8	5"BSP		240	191	173	154	130	94
55	75	13	V-8	5"BSP		260	207	187	166	140	101
55	75	14	V-8	5"BSP		280	223	202	179	151	109
55	75	15	V-8	5"BSP		300	239	216	192	162	117
67	90	16	V-8	5"BSP		320	254	230	205	173	125
67	90	17	V-8	5"BSP		340	270	245	218	184	133
67	90	18	V-8	5"BSP		360	286	259	230	194	140
75	100	19	V-8	5"BSP		380	302	274	243	205	148
75	100	20	V-8	5"BSP		400	318	288	256	216	156

Product image

Model Name	Specification
Model Name	D (mm)	L (mm)	Pump Weight Kg.	Weight (incl. pkg.) Kg.
DSP8MFF77 -01	188	620	21	24
DSP8MFF77 -02	188	748	25	28
DSP8MFF77 -03	188	876	29	32
DSP8MFF77 -04	188	1004	33	36
DSP8MFF77 -05	188	1132	37	40
DSP8MFF77 -06	188	1260	41	44
DSP8MFF77 -07	188	1388	45	48
DSP8MFF77 -08	188	1516	49	52
DSP8MFF77 -09	188	1644	53	56
DSP8MFF77 -10	196	1772	55	58
DSP8MFF77 -11	196	1900	59	62
DSP8MFF77 -12	196	2028	63	66
DSP8MFF77 -13	196	2156	67	70
DSP8MFF77 -14	196	2284	71	74
DSP8MFF77 -15	196	2412	75	78
DSP8MFF77 -16	196	2540	79	82
DSP8MFF77 -17	196	2668	83	86
DSP8MFF77 -18	196	2796	87	90
DSP8MFF77 -19	196	2924	91	94
DSP8MFF77 -20	196	3052	95	98

G: Available Outlet Size BSP 5"

D: Maximum Diameter With Single Cable

Guard DP75 -01 to DP75 -11 pump are available in 6" joining DP75 -12 to DP75 -20 pump are available in 8" joining
