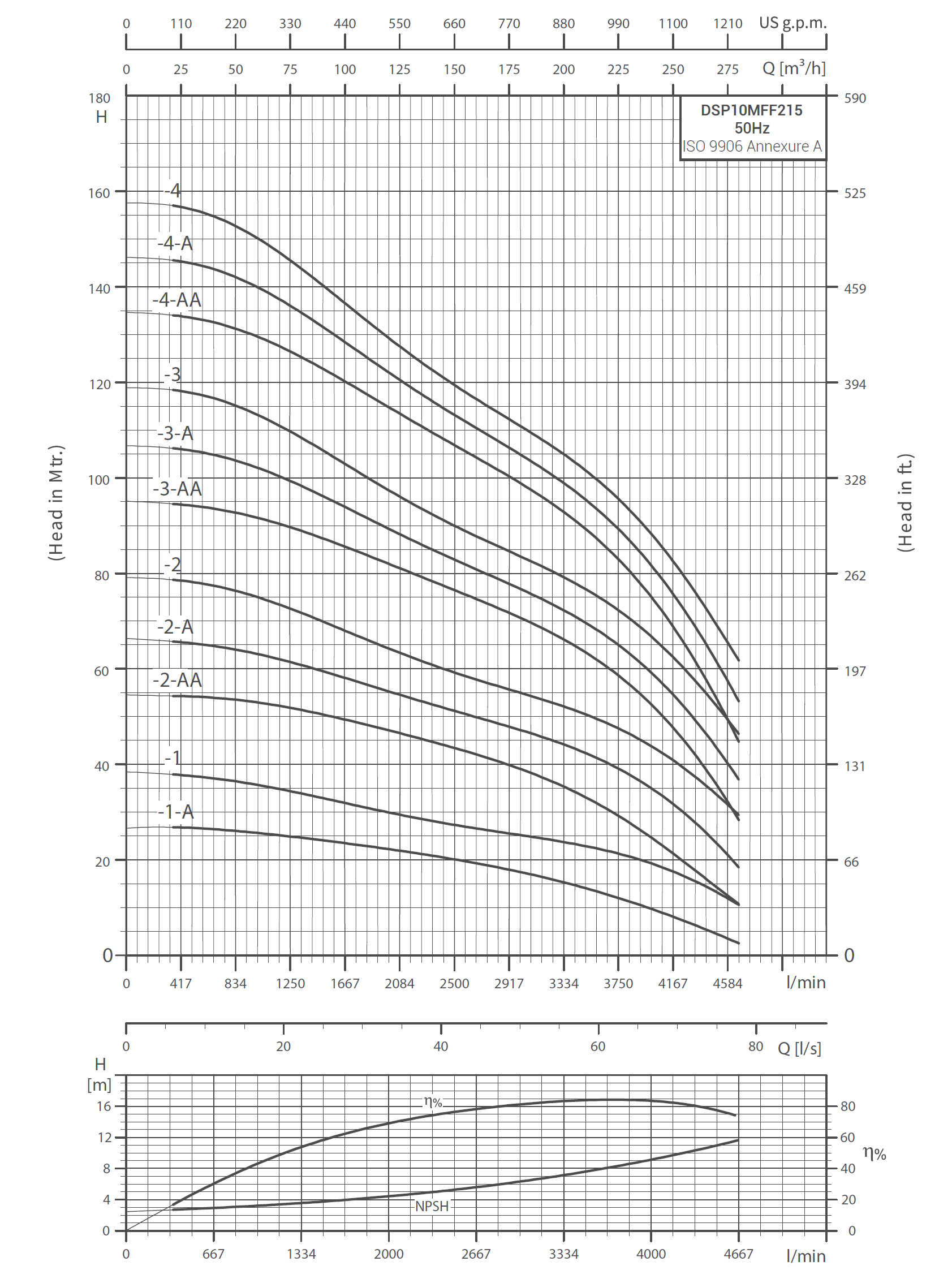

DSP10MFF215, 50HZ SERIES
MODEL IDENTIFICATION CODE
NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)
|
Model Name |
Specification |
|||
|
D (mm) |
L (mm) |
Pump Weight Kg. |
Weight (incl. pkg.) Kg. |
|
|
DSP10MFF215-1-A |
241 |
790 |
92 |
96 |
|
DSP10MFF215-1 |
241 |
790 |
97 |
101 |
|
DSP10MFF215-2-AA |
241 |
966 |
127 |
131 |
|
DSP10MFF215-2-A |
241 |
966 |
174 |
178 |
|
DSP10MFF 215-2 |
241 |
966 |
228 |
232 |
|
DSP10MFF215-3-AA |
241 |
1142 |
253 |
257 |
|
DSP10MFF 215-3-A |
241 |
1142 |
253 |
257 |
|
DSP10MFF215-3 |
241 |
1142 |
279 |
283 |
|
DSP10MFF 215-4-AA |
241 |
1318 |
308 |
312 |
|
DSP10MFF 215-4-A |
241 |
1318 |
308 |
312 |
|
DSP10MFF 215-4 |
241 |
1318 |
308 |
312 |
