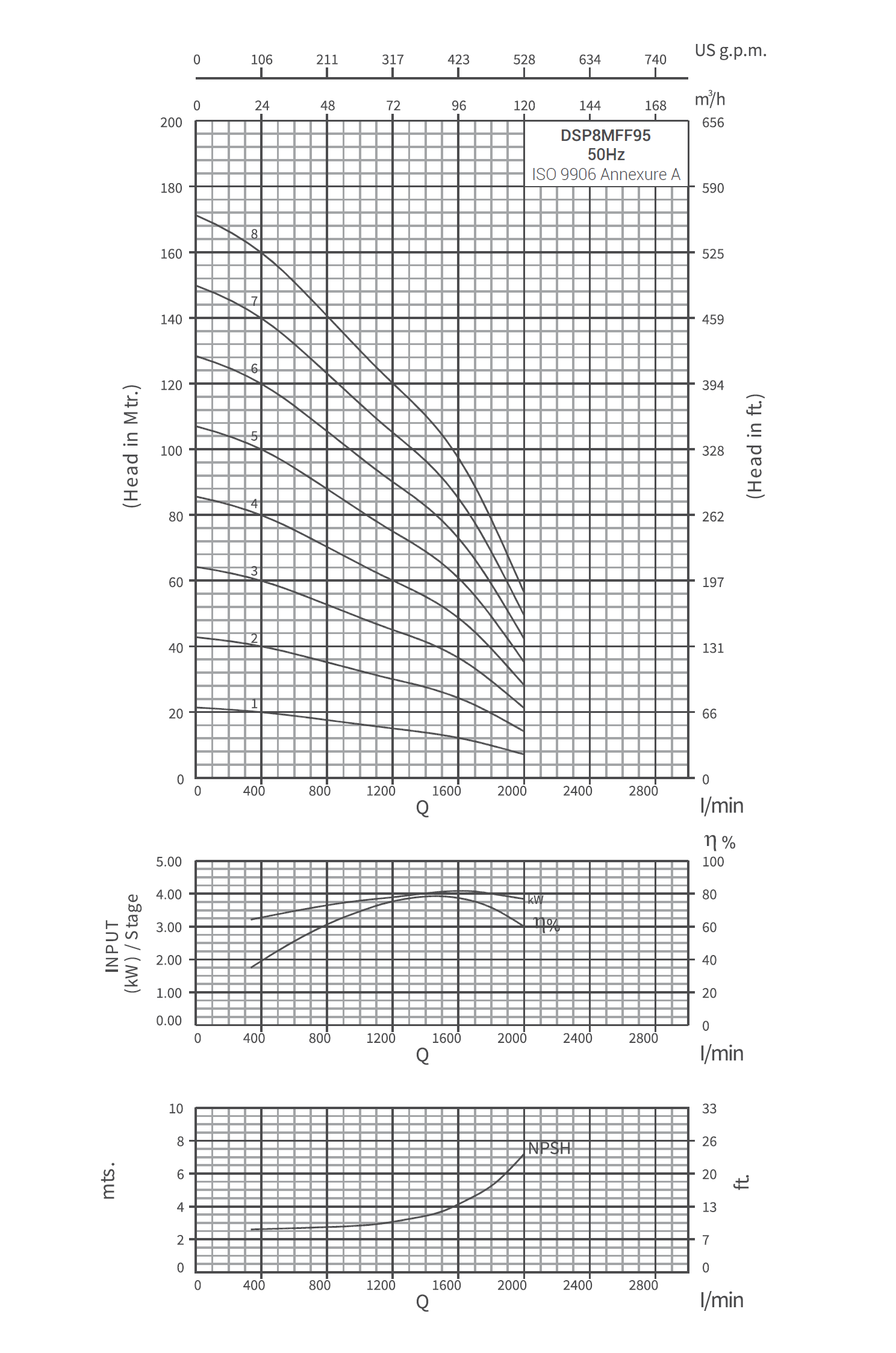

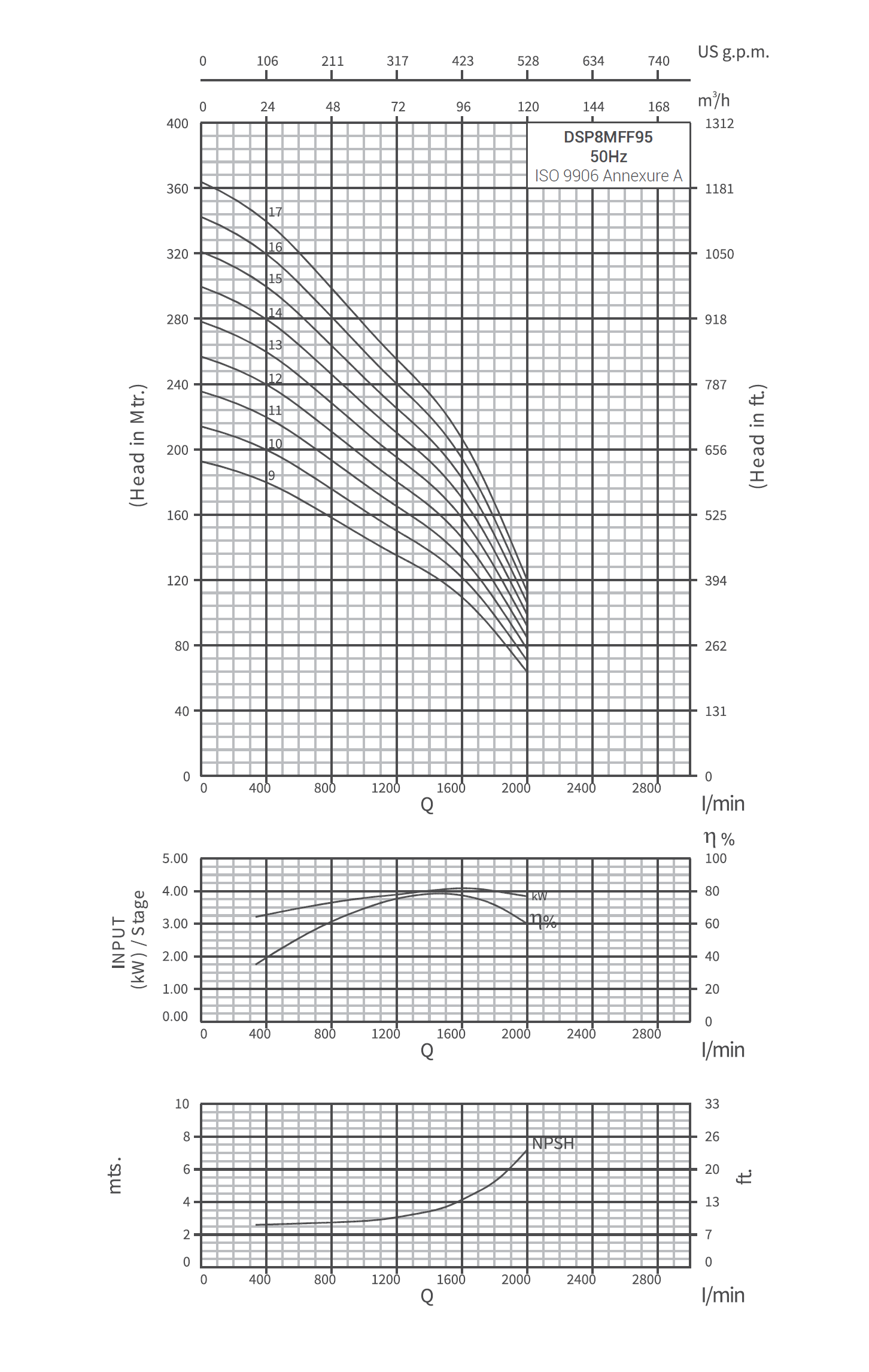

DSP8MFF95, 50HZ SERIES
MODEL IDENTIFICATION CODE
NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)
|
kW |
HP |
Stage |
Motor Joinings |
Outlet Size |
|
Discharge |
|||||
|
m3/h |
0 |
48 |
72 |
96 |
108 |
120 |
|||||
|
Ipm |
0 |
800 |
1200 |
1600 |
1800 |
2000 |
|||||
|
5.5 |
7.5 |
1 |
V-6 |
5"BSP |
Head in Mtrs. |
21 |
17 |
14 |
11 |
9 |
6 |
|
5.5 |
7.5 |
2-BB |
V-6 |
5"BSP |
27 |
22 |
19 |
12 |
6 |
2 |
|
|
7.5 |
10 |
2-A |
V-8 |
5"BSP |
39 |
29 |
25 |
20 |
15 |
9 |
|
|
9.3 |
12.5 |
2 |
V-8 |
5"BSP |
43 |
35 |
30 |
24 |
19 |
13 |
|
|
9.3 |
12.5 |
3-BB |
V-8 |
5"BSP |
48 |
39 |
34 |
24 |
16 |
7 |
|
|
11 |
15 |
3-B |
V-8 |
5"BSP |
57 |
46 |
40 |
30 |
22 |
13 |
|
|
13 |
17.5 |
3 |
V-8 |
5"BSP |
64 |
52 |
44 |
35 |
29 |
20 |
|
|
15 |
20 |
4-B |
V-8 |
5"BSP |
78 |
63 |
54 |
41 |
32 |
20 |
|
|
18.5 |
25 |
4 |
V-8 |
5"BSP |
86 |
69 |
59 |
47 |
39 |
27 |
|
|
18.5 |
25 |
5-AB |
V-8 |
5"BSP |
95 |
75 |
64 |
49 |
37 |
20 |
|
|
22 |
30 |
5 |
V-8 |
5"BSP |
107 |
87 |
74 |
59 |
49 |
34 |
|
|
26 |
35 |
6 |
V-8 |
5"BSP |
128 |
104 |
89 |
71 |
58 |
40 |
|
|
30 |
40 |
7 |
V-8 |
5"BSP |
150 |
121 |
104 |
83 |
68 |
47 |
|
|
37 |
50 |
8 |
V-8 |
5"BSP |
171 |
138 |
118 |
94 |
78 |
54 |
|
|
37 |
50 |
9 |
V-8 |
5"BSP |
193 |
156 |
133 |
106 |
87 |
60 |
|
|
45 |
60 |
10 |
V-8 |
5"BSP |
214 |
173 |
148 |
118 |
97 |
67 |
|
|
55 |
75 |
11 |
V-8 |
5"BSP |
235 |
190 |
163 |
130 |
107 |
74 |
|
|
55 |
75 |
12 |
V-8 |
5"BSP |
257 |
208 |
178 |
142 |
116 |
80 |
|
|
55 |
75 |
13 |
V-8 |
5"BSP |
278 |
225 |
192 |
153 |
126 |
87 |
|
|
67 |
90 |
14 |
V-8 |
5"BSP |
300 |
242 |
207 |
165 |
136 |
94 |
|
|
75 |
100 |
15 |
V-8 |
5"BSP |
321 |
260 |
222 |
177 |
146 |
101 |
|
|
75 |
100 |
16 |
V-8 |
5"BSP |
342 |
277 |
237 |
189 |
155 |
107 |
|
|
75 |
100 |
17 |
V-8 |
5"BSP |
364 |
294 |
252 |
201 |
165 |
114 |
|
|
Model Name |
Specification |
|||
|
D (mm) |
L (mm) |
Pump Weight Kg. |
Weight (incl. pkg.) Kg. |
|
|
DSP8MFF95 -01 |
188 |
620 |
21 |
24 |
|
DSP8MFF95 -02 |
188 |
748 |
25 |
28 |
|
DSP8MFF95 -03 |
188 |
876 |
29 |
32 |
|
DSP8MFF95 -04 |
188 |
1004 |
33 |
36 |
|
DSP8MFF95 -05 |
188 |
1132 |
37 |
40 |
|
DSP8MFF95 -06 |
188 |
1260 |
41 |
44 |
|
DSP8MFF95 -07 |
188 |
1388 |
45 |
48 |
|
DSP8MFF95 -08 |
188 |
1516 |
49 |
52 |
|
DSP8MFF95 -09 |
188 |
1644 |
53 |
56 |
|
DSP8MFF95 -10 |
196 |
1772 |
55 |
58 |
|
DSP8MFF95 -11 |
196 |
1900 |
59 |
62 |
|
DSP8MFF95 -12 |
196 |
2028 |
63 |
66 |
|
DSP8MFF95 -13 |
196 |
2156 |
67 |
70 |
|
DSP8MFF95 -14 |
196 |
2284 |
71 |
74 |
|
DSP8MFF95 -15 |
196 |
2412 |
75 |
78 |
|
DSP8MFF95 -16 |
196 |
2540 |
79 |
82 |
|
DSP8MFF95 -17 |
196 |
2668 |
83 |
86 |
G: Available Outlet Size BSP 5"
D: Maximum Diameter With Single Cable Guard
D: Maximum Diameter With Double Cable Guard upto 50 HP 6” Motor Joining
DP95 - 01 to DP95 - 09 pump are available in 6" joining DP95 -10 to DP95 -17 pump are available in 8" joining
