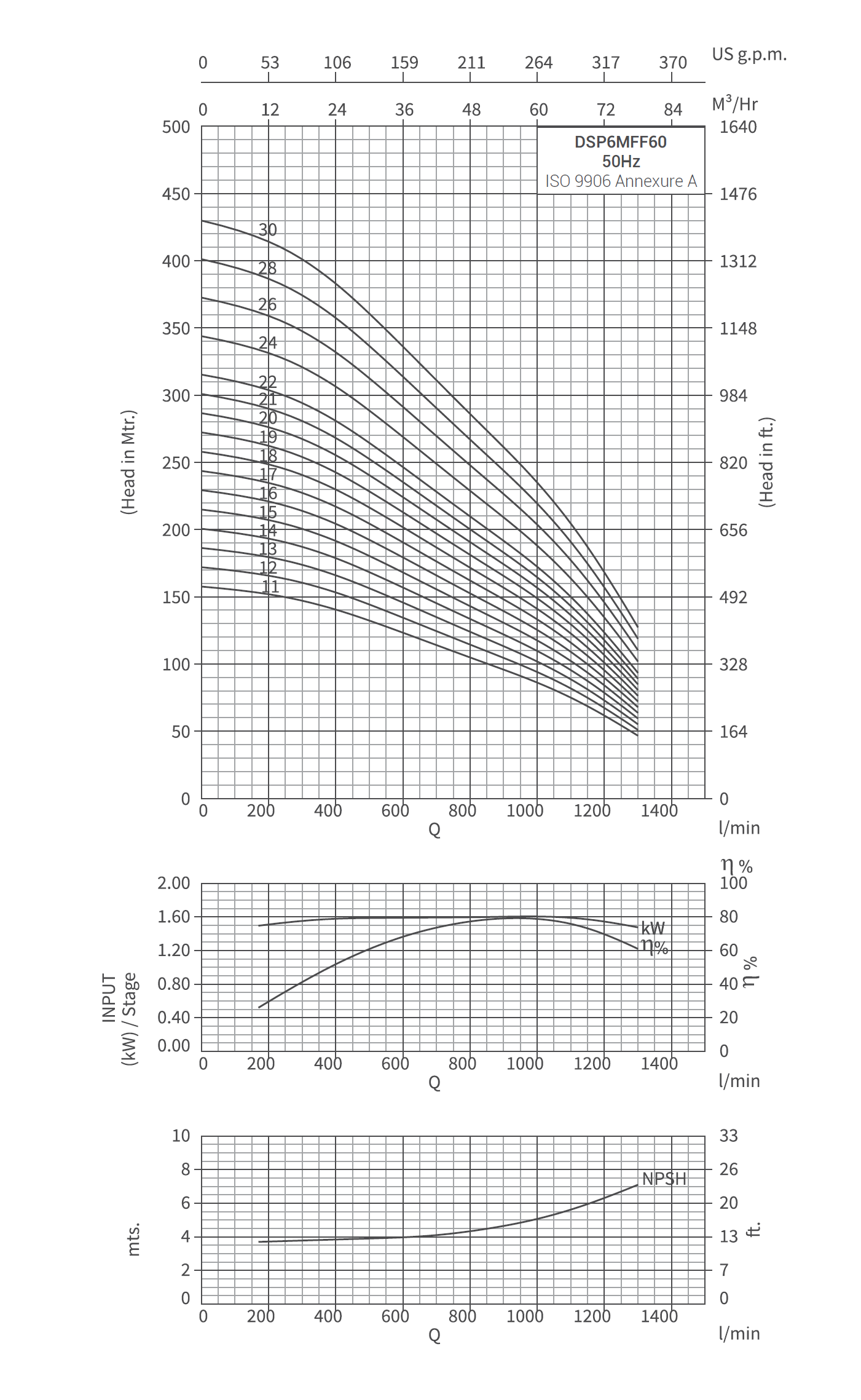

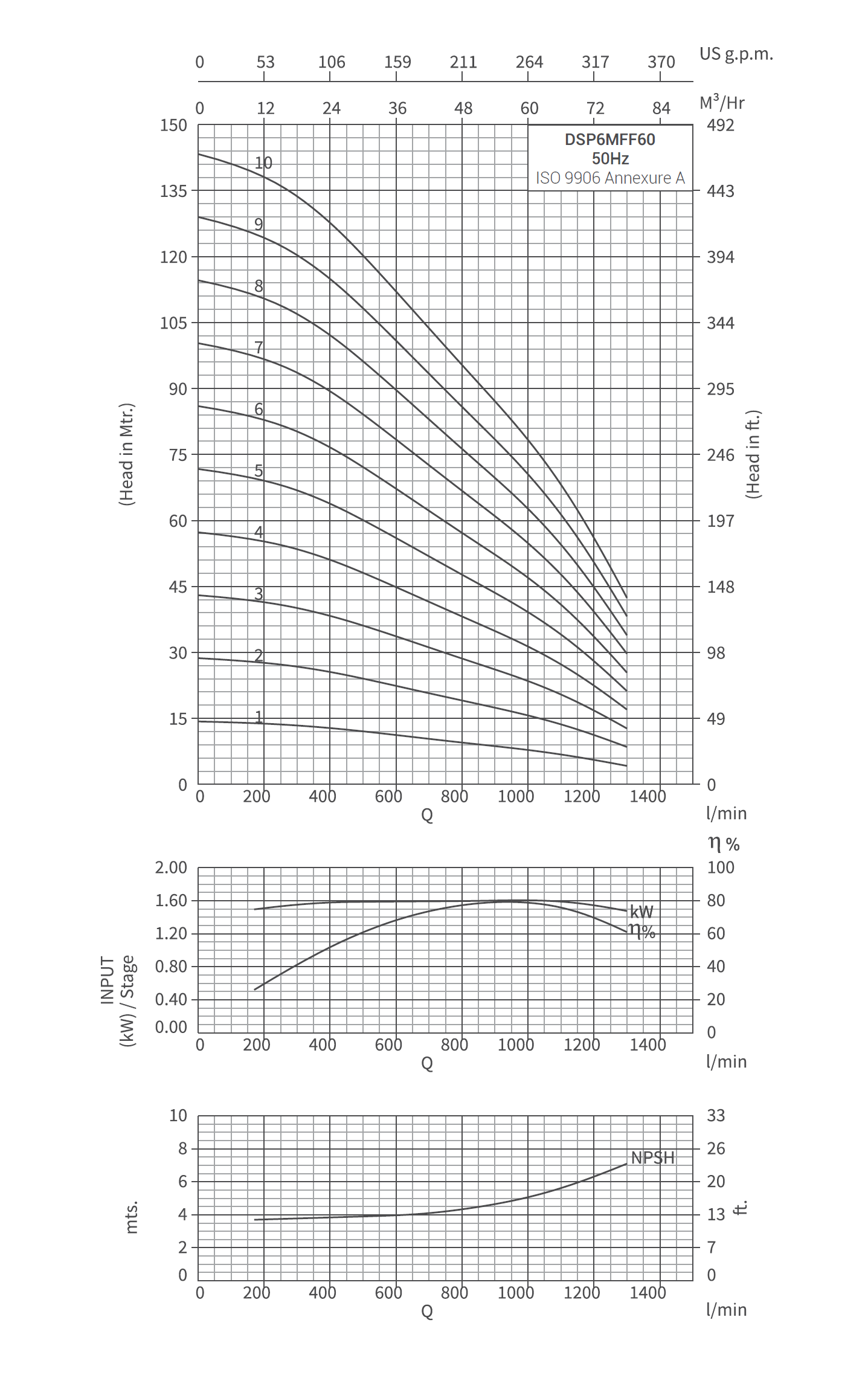

DSP6MFF60, 50HZ SERIES
MODEL IDENTIFICATION CODE
NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)
|
kW |
HP |
Stage |
Motor Joinings |
Outlet Size |
|
Discharge |
|||||
|
m3/h |
0 |
24 |
36 |
48 |
60 |
72 |
|||||
|
Ipm |
0 |
400 |
600 |
800 |
1000 |
1200 |
|||||
|
1.5 |
2 |
1-A |
V-6 |
4'BSP |
Head in Mtrs. |
11 |
9 |
7 |
6 |
4 |
0 |
|
2.2 |
3 |
1 |
V-6 |
4'BSP |
14 |
12 |
11 |
9 |
7 |
5 |
|
|
3 |
4 |
2-B |
V-6 |
4'BSP |
21 |
20 |
16 |
14 |
10 |
6 |
|
|
3.7 |
5 |
2 |
V-6 |
4'BSP |
28 |
26 |
22 |
19 |
15 |
11 |
|
|
5.5 |
7.5 |
3 |
V-6 |
4'BSP |
43 |
38 |
33 |
28 |
23 |
17 |
|
|
7.5 |
10 |
4 |
V-6 |
4'BSP |
57 |
51 |
44 |
38 |
31 |
22 |
|
|
9.3 |
12.5 |
5 |
V-6 |
4'BSP |
71 |
64 |
55 |
47 |
39 |
28 |
|
|
11 |
15 |
6 |
V-6 |
4'BSP |
85 |
77 |
66 |
56 |
46 |
33 |
|
|
13 |
17.5 |
7 |
V-6 |
4'BSP |
85 |
77 |
66 |
56 |
46 |
33 |
|
|
13 |
17.5 |
8-B |
V-6 |
4'BSP |
99 |
90 |
77 |
66 |
54 |
39 |
|
|
15 |
20 |
8 |
V-6 |
4'BSP |
106 |
97 |
82 |
70 |
56 |
39 |
|
|
15 |
20 |
9-B |
V-6 |
4'BSP |
114 |
102 |
88 |
75 |
62 |
44 |
|
|
18.5 |
25 |
9 |
V-6 |
4'BSP |
121 |
109 |
93 |
79 |
64 |
44 |
|
|
18.5 |
25 |
10 |
V-6 |
4'BSP |
128 |
115 |
99 |
85 |
69 |
50 |
|
|
22 |
30 |
11 |
V-6 |
4'BSP |
142 |
128 |
110 |
94 |
77 |
55 |
|
|
22 |
30 |
12 |
V-6 |
4'BSP |
156 |
141 |
121 |
103 |
85 |
61 |
|
|
26 |
35 |
13 |
V-6 |
4'BSP |
170 |
154 |
132 |
113 |
92 |
66 |
|
|
26 |
35 |
14 |
V-6 |
4'BSP |
185 |
166 |
143 |
122 |
100 |
72 |
|
|
26 |
35 |
15 |
V-6 |
4'BSP |
199 |
179 |
154 |
132 |
108 |
77 |
|
|
30 |
40 |
16 |
V-6 |
4'BSP |
213 |
192 |
165 |
141 |
116 |
83 |
|
|
30 |
40 |
17 |
V-6 |
4'BSP |
227 |
205 |
176 |
150 |
123 |
88 |
|
|
30 |
40 |
18 |
V-8 |
4'BSP |
241 |
218 |
187 |
160 |
131 |
94 |
|
|
37 |
50 |
19 |
V-8 |
4'BSP |
256 |
230 |
198 |
169 |
139 |
99 |
|
|
37 |
50 |
20 |
V-8 |
4'BSP |
270 |
243 |
209 |
179 |
146 |
105 |
|
|
37 |
50 |
21 |
V-8 |
4'BSP |
284 |
256 |
220 |
188 |
154 |
110 |
|
|
45 |
60 |
22 |
V-8 |
4'BSP |
298 |
269 |
231 |
197 |
162 |
116 |
|
|
45 |
60 |
23 |
V-8 |
4" BSP |
312 |
282 |
242 |
207 |
169 |
121 |
|
|
45 |
60 |
24 |
V-8 |
4" BSP |
327 |
294 |
253 |
216 |
177 |
127 |
|
|
55 |
75 |
26 |
V-8 |
4" BSP |
354 |
318 |
274 |
234 |
192 |
137 |
|
|
55 |
75 |
28 |
V-8 |
4" BSP |
381 |
342 |
295 |
252 |
207 |
147 |
|
|
55 |
75 |
30 |
V-8 |
4" BSP |
408 |
366 |
316 |
270 |
222 |
157 |
|
|
Model Name |
Specification |
|||
|
D (mm) |
L (mm) |
Pump Weight Kg. |
Weight (incl. pkg.) Kg. |
|
|
DSP6MFF60 -01 |
147 |
113 |
12 |
14 |
|
DSP6MFF60 -02 |
147 |
509 |
14 |
15 |
|
DSP6MFF60 -03 |
147 |
622 |
16 |
17 |
|
DSP6MFF60 -04 |
147 |
735 |
18 |
21 |
|
DSP6MFF60 -05 |
147 |
848 |
20 |
23 |
|
DSP6MFF60 -06 |
147 |
961 |
18 |
24 |
|
DSP6MFF60 -07 |
147 |
1074 |
20 |
25 |
|
DSP6MFF60 -08 |
147 |
1187 |
22 |
28 |
|
DSP6MFF60 -09 |
147 |
1300 |
24 |
29 |
|
DSP6MFF60 -10 |
147 |
1413 |
26 |
34 |
|
DSP6MFF60 -11 |
147 |
1526 |
28 |
36 |
|
DSP6MFF60 -12 |
147 |
1639 |
32 |
42 |
|
DSP6MFF60 -13 |
147 |
1752 |
34 |
44 |
|
DSP6MFF60 -14 |
147 |
1865 |
36 |
46 |
|
DSP6MFF60 -15 |
147 |
1978 |
38 |
48 |
|
DSP6MFF60 -16 |
147 |
2091 |
40 |
50 |
|
DSP6MFF60 -17 |
147 |
2204 |
42 |
52 |
|
DSP6MFF60 -18 |
147 |
2317 |
44 |
54 |
|
DSP6MFF60 -19 |
147 |
2430 |
46 |
56 |
|
DSP6MFF60 -20 |
147 |
2543 |
48 |
58 |
|
DSP6MFF60 -21 |
147 |
2656 |
50 |
60 |
G: Available outlet size 3"& 4"
D: With cable Guard
DP60 -1 to DP60 -4 pumps are also available in 4" Joining. DP60 -22, DP60 -24, DP60 -25, DP60 -28 &
DP60 -30 pumps are available in 8" Joining.
