Duke Sub 6"

DSP6MFF17, 50HZ SERIES

Product image

MODEL IDENTIFICATION CODE

Product image

NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)

Product image

Product image

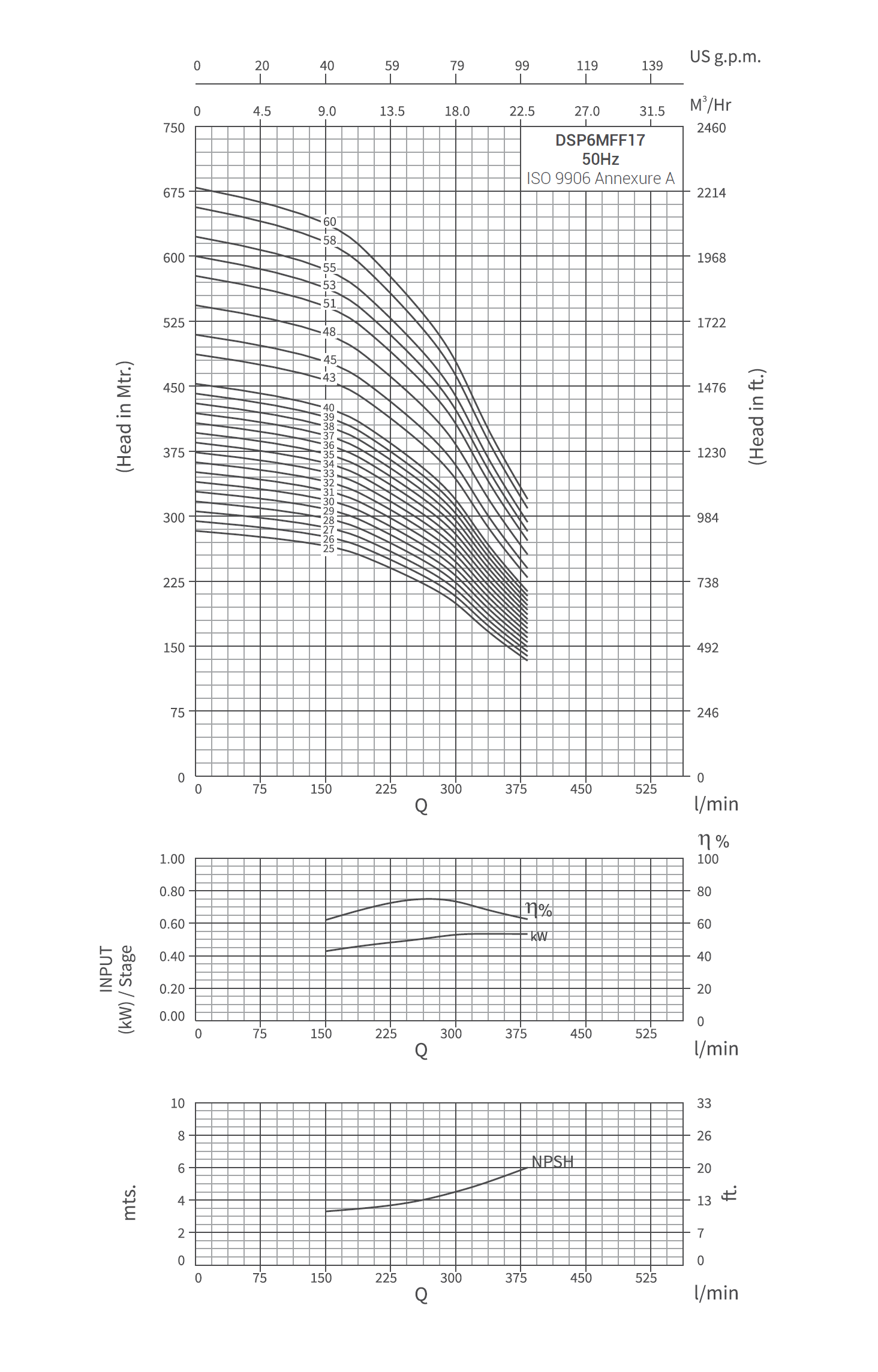

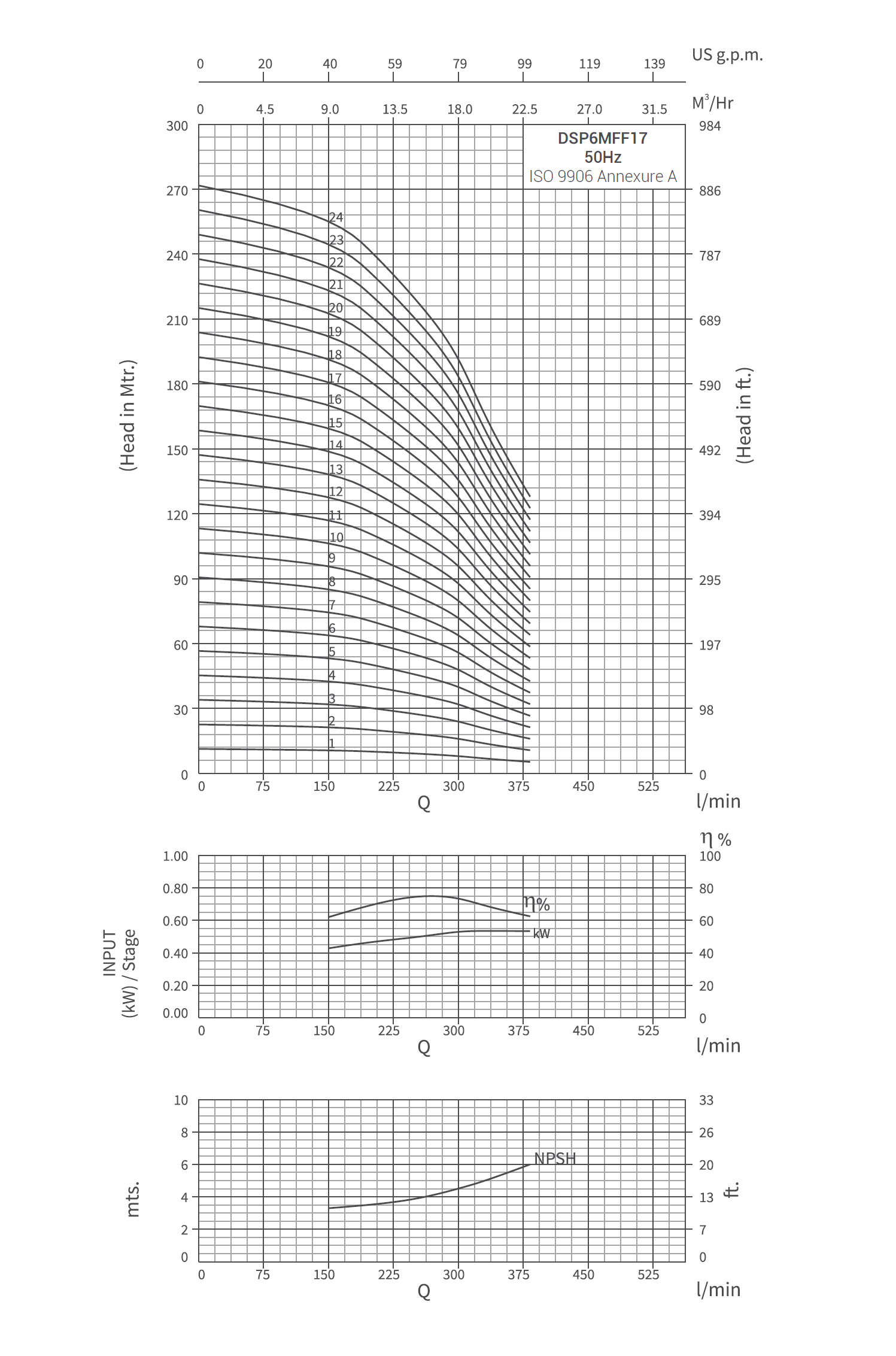

kW	HP	Stage	Motor Joinings	Outlet Size		Discharge
					m3/h	0	6	12	15	18	21
					Ipm	0	100	200	250	300	350
0.55	0.75	1	V-6	2½" BSP	Head in Mtrs.	11	10	9	8	7	5
1.1	1.5	2	V-6	2½" BSP		22	22	20	18	15	11
2.2	3	3	V-6	2½" BSP		34	33	29	26	22	17
2.2	3	4	V-6	2½" BSP		45	44	39	35	30	23
3	4	5	V-6	2½" BSP		56	55	49	44	37	29
3.7	5	6	V-6	2½" BSP		67	66	59	53	44	34
4.5	6	7	V-6	2½" BSP		67	66	59	53	44	34
5.5	7.5	8	V-6	2½" BSP		78	77	69	62	52	40
5.5	7.5	9	V-6	2½" BSP		90	88	78	70	59	46
5.5	7.5	10	V-6	2½" BSP		101	99	88	79	67	51
7.5	10	11	V-6	2½" BSP		112	110	98	88	74	57
7.5	10	12	V-6	2½" BSP		123	121	108	97	81	63
7.5	10	13	V-6	2½" BSP		134	132	118	106	89	68
9.3	12.5	14	V-6	2½" BSP		146	143	127	114	96	74
9.3	12.5	15	V-6	2½" BSP		157	154	137	123	104	80
9.3	12.5	16	V-6	2½" BSP		168	165	147	132	111	86
9.3	12.5	17	V-6	2½" BSP		179	176	157	141	118	91
9.3	12.5	18	V-6	2½" BSP		190	187	167	150	126	97
11	15	19	V-6	2½" BSP		202	198	176	158	133	103
11	15	20	V-6	2½" BSP		213	209	186	167	141	108
13	17.5	21	V-6	2½" BSP		224	220	196	176	148	114
13	17.5	22	V-6	2½" BSP		235	231	206	185	155	120
13	17.5	23	V-6	2½" BSP		246	242	216	194	163	125
13	17.5	24	V-6	2½" BSP		258	253	225	202	170	131
15	20	25	V-6	2½" BSP		269	264	235	211	178	137
15	20	26	V-6	2½" BSP		280	275	245	220	185	143
15	20	27	V-6	2½" BSP		291	286	255	229	192	148
18.5	25	28	V-6	2½" BSP		302	297	265	238	200	154
18.5	25	29	V-6	2½" BSP		314	308	274	246	207	160
18.5	25	30	V-6	2½" BSP		325	319	284	255	215	165
18.5	25	31	V-6	2½" BSP		336	330	294	264	222	171
18.5	25	32	V-6	2½" BSP		347	341	304	273	229	177
18.5	25	33	V-6	2½" BSP		358	352	314	282	237	182
22	30	34	V-6	2½" BSP		370	363	323	290	244	188
22	30	35	V-6	2½" BSP		381	374	333	299	252	194
22	30	36	V-6	2½" BSP		392	385	343	308	259	200
22	30	37	V-6	2½" BSP		403	396	353	317	266	205
22	30	38	V-6	2½" BSP		414	407	363	326	274	211
22	30	39	V-6	2½" BSP		426	418	372	334	281	217
22	30	40	V-6	2½" BSP		437	429	382	343	289	222

Product image

Model Name	Specification
Model Name	D (mm)	L (mm)	Pump Weight Kg.	Weight (incl. pkg.) Kg.
DSP6MFF17 -01	144	331	8	10
DSP6MFF17 -02	144	392	9	11
DSP6MFF17 -03	144	452	11	12
DSP6MFF17 - 04	144	513	12	13
DSP6MFF17 -05	144	573	13	15
DSP6MFF17 -06	144	634	14	16
DSP6MFF17 -07	144	694	16	18
DSP6MFF17 -08	144	755	17	19
DSP6MFF17 -09	144	815	18	20
DSP6MFF17 -10	144	876	19	21
DSP6MFF17 -11	144	936	21	23
DSP6MFF17 -12	144	997	22	24
DSP6MFF17 -13	144	1057	23	26
DSP6MFF17 -14	144	1118	24	27
DSP6MFF17 -15	144	1178	26	28
DSP6MFF17 -16	144	1239	27	30
DSP6MFF17 -17	144	1299	28	31
DSP6MFF17 -18	144	1360	29	32
DSP6MFF17 -19	144	1420	31	34
DSP6MFF17 -20	144	1481	32	35
DSP6MFF17 -21	144	1541	33	37
DSP6MFF17 - 22	144	1602	34	38
DSP6MFF17 - 23	144	1662	36	39
DSP6MFF17 - 24	144	1723	37	40
DSP6MFF17 - 25	144	1783	38	42
DSP6MFF17 - 26	144	1844	39	43
DSP6MFF17 - 27	144	1904	41	44
DSP6MFF17 - 28	144	1965	42	45
DSP6MFF17 - 29	144	2025	43	47
DSP6MFF17 - 30	144	2086	44	48
DSP6MFF17 -31	144	2146	46	50
DSP6MFF17 -32	144	2207	47	51
DSP6MFF17 - 33	144	2267	48	52
DSP6MFF17 - 34	144	2328	49	53
DSP6MFF17 -35	144	2388	51	55
DSP6MFF17 - 36	144	2449	52	56
DSP6MFF17 - 37	144	2509	53	57
DSP6MFF17 - 38	144	2570	54	58
DSP6MFF17 - 39	144	2630	56	60
DSP6MFF17 - 40	144	2691	57	61

G : Available Outlet Size BSP 2.5"/ 3" D: With Cable Guard

DP17-01 to DP17-13 pumps are also available in 4" joining DP17-43, DP17 -45, DP17 -48, DP17 -51, DP17 -53,

DP17 -55, DP17 -58 & DP17 -60 pumps are available in 6" joining with mounted sleeve & with outlet size BSP 3.0"
