Duke Sub 6"

DSP6MFF30, 50HZ SERIES

Product image

MODEL IDENTIFICATION CODE

Product image

NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)

Product image

Product image

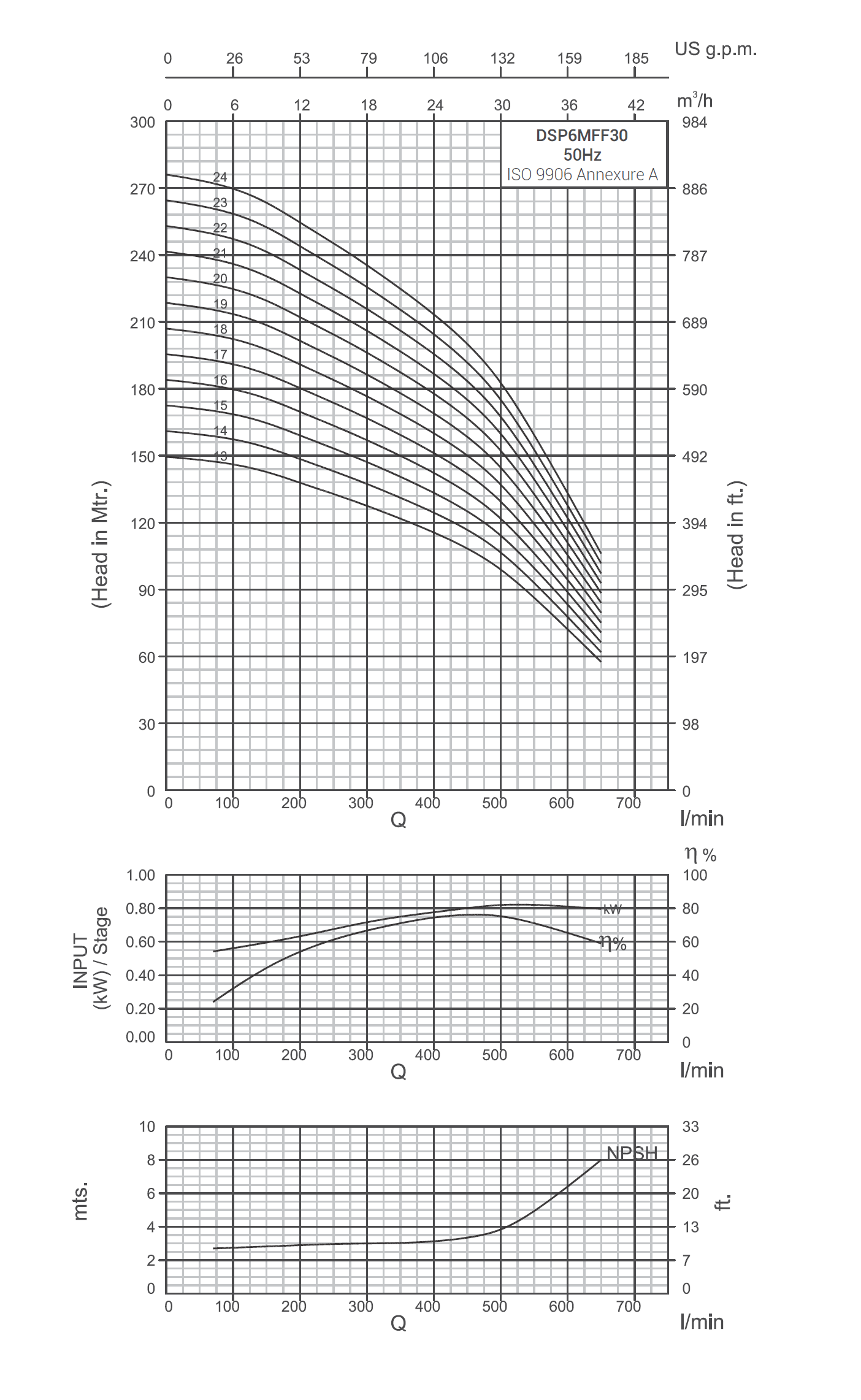

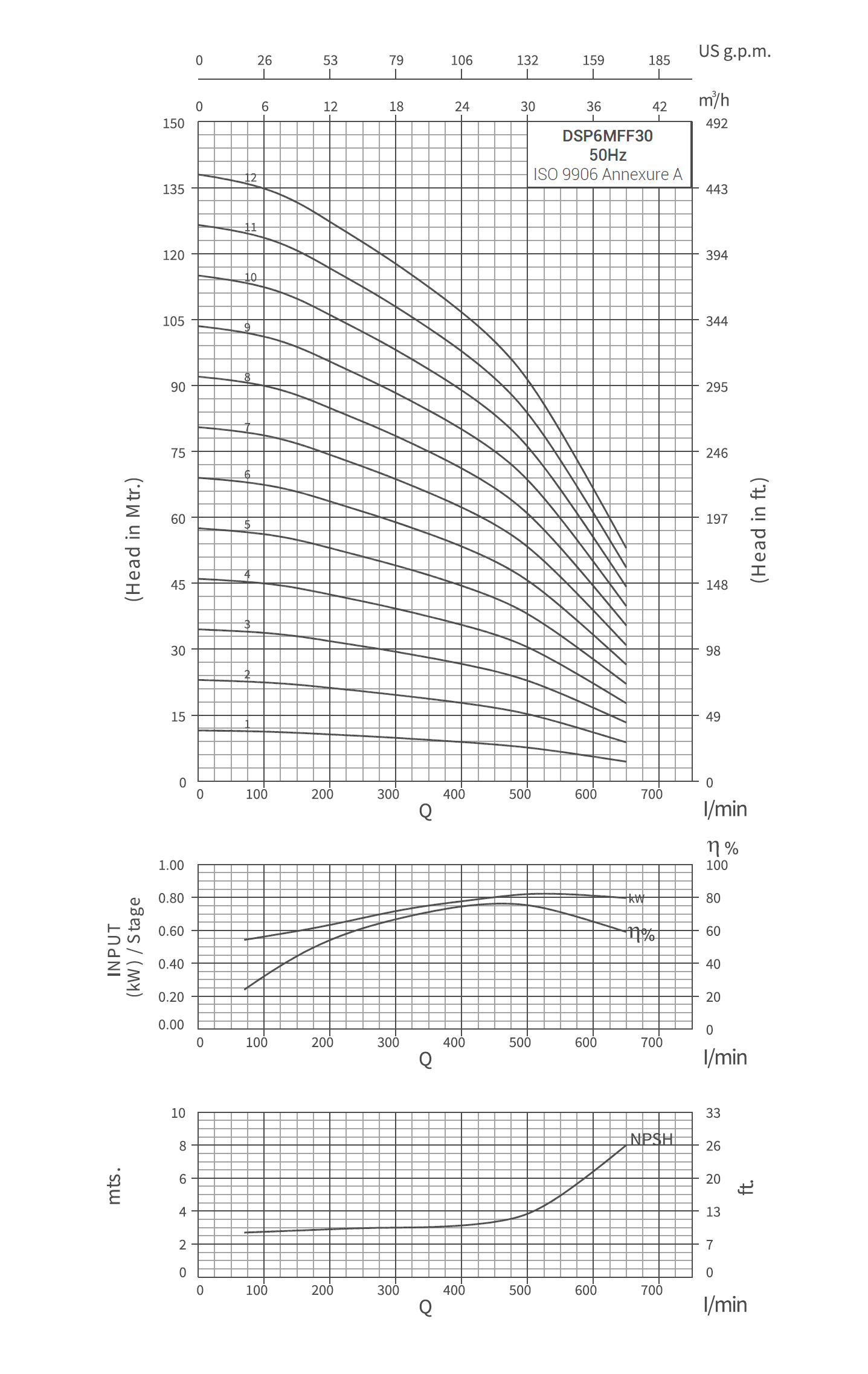

kW	HP	Stage	Motor Joinings	Outlet Size		Discharge
					m3/h	0	12	24	30	36	39
					Ipm	0	200	400	500	600	650
1.1	1.5	1	V-6	3"BSP	Head in Mtrs.	11	10	8	7	5	4
2.2	3	2	V-6	3"BSP		23	21	18	15	11	8
3	4	3	V-6	3"BSP		34	32	26	23	16	13
3.7	5	4	V-6	3"BSP		46	42	35	30	22	17
5.5	7.5	5	V-6	3"BSP		57	53	44	38	27	21
5.5	7.5	6	V-6	3"BSP		68	64	53	45	32	25
7.5	10	7	V-6	3"BSP		80	74	62	53	38	29
7.5	10	8	V-6	3"BSP		91	85	70	60	43	34
9.3	12.5	9	V-6	3"BSP		103	95	79	68	49	38
9.3	12.5	10	V-6	3"BSP		114	106	88	75	54	42
9.3	12.5	11	V-6	3"BSP		125	117	97	83	59	46
11	15	12	V-6	3"BSP		137	127	106	90	65	50
11	15	13	V-6	3"BSP		148	138	114	98	70	55
13	17.5	14	V-6	3"BSP		160	148	123	105	76	59
13	17.5	15	V-6	3"BSP		171	159	132	113	81	63
15	20	16	V-6	3"BSP		182	170	141	120	86	67
15	20	17	V-6	3"BSP		194	180	150	128	92	71
18.5	25	18	V-6	3"BSP		205	191	158	135	97	76
18.5	25	19	V-6	3"BSP		217	201	167	143	103	80
18.5	25	20	V-6	3"BSP		228	212	176	150	108	84
18.5	25	21	V-6	3"BSP		239	223	185	158	113	88
22	30	22	V-6	3"BSP		251	233	194	165	119	92
22	30	23	V-6	3"BSP		262	244	202	173	124	97
22	30	24	V-6	3"BSP		274	254	211	180	130	101
22	30	25	V-6	3"BSP		285	265	220	188	135	105
22	30	26	V-6	3"BSP		296	276	229	195	140	109
26	35	27	V-6	3"BSP		308	286	238	203	146	113
26	35	28	V-6	3"BSP		319	297	246	210	151	118
26	35	29	V-6	3"BSP		331	307	255	218	157	122
26	35	30	V-6	3"BSP		342	318	264	225	162	126
30	40	31	V-6	3"BSP		353	329	273	233	167	130
30	40	32	V-6	3"BSP		365	339	282	240	173	134
30	40	33	V-6	3"BSP		376	350	290	248	178	139
30	40	34	V-6	3"BSP		388	360	299	255	184	143
30	40	35	V-6	3"BSP		399	371	308	263	189	147
37	50	39	V-6	3"BSP		444	413	343	293	211	164
37	50	43	V-6	3"BSP		489	455	378	323	252	181

Product image

Model Name	Specification
Model Name	D (mm)	L (mm)	Pump Weight Kg.	Weight (incl. pkg.) Kg.
DSP6MFF30 -01	144	367	9	14
DSP6MFF30 -02	144	463	11	16
DSP6MFF30 -03	144	559	13	18
DSP6MFF30 -04	144	655	15	20
DSP6MFF30 -05	144	751	11	16
DSP6MFF30 -06	144	847	19	24
DSP6MFF30 -07	144	943	21	26
DSP6MFF30 -08	144	1039	23	28
DSP6MFF30 -09	144	1135	25	30
DSP6MFF30 -10	144	1231	27	32
DSP6MFF30 -11	144	1327	29	34
DSP6MFF30 -12	144	1423	31	36
DSP6MFF30 -13	144	1519	33	38
DSP6MFF30 -14	144	1615	35	40
DSP6MFF30 -15	144	1711	37	47
DSP6MFF30 -16	144	1807	39	49
DSP6MFF30 -17	144	1903	41	51
DSP6MFF30 -18	144	1999	43	53
DSP6MFF30 -19	144	2095	45	55
DSP6MFF30 -20	144	2191	47	57
DSP6MFF30 -21	144	2287	49	59
DSP6MFF30 -22	144	2383	51	63
DSP6MFF30 -23	144	2479	53	65
DSP6MFF30 -24	144	2575	55	67
DSP6MFF30 -25	144	2671	57	69
DSP6MFF30 -26	144	2767	59	71
DSP6MFF30 -27	144	2863	61	73
DSP6MFF30 -28	144	2959	63	75
DSP6MFF30 -29	144	3055	65	77
DSP6MFF30 -30	144	3151	67	79
DSP6MFF30 -31	144	3247	69	81
DSP6MFF30 -32	144	3343	71	83
DSP6MFF30 -33	144	3439	73	85
DSP6MFF30 -34	144	3535	75	87
DSP6MFF30 -35	144	3631	77	89
DSP6MFF30 -39	144	4450	105	117
DSP6MFF30 -43	144	4834	113	125

G: Available Outlet Size BSP 2.5" & 3.0"

D: With Cable Guard

DP30 -01 to DP30 -8 pumps are also available in 4" joining.

DP30 -39 & DP30 -43 pumps are also available with mounted sleeve in 6" joining.

DP30 -46, DP30 -49, DP30 -52 & DP30 -54 pumps are also available with mounted sleeve in 8" joining.
