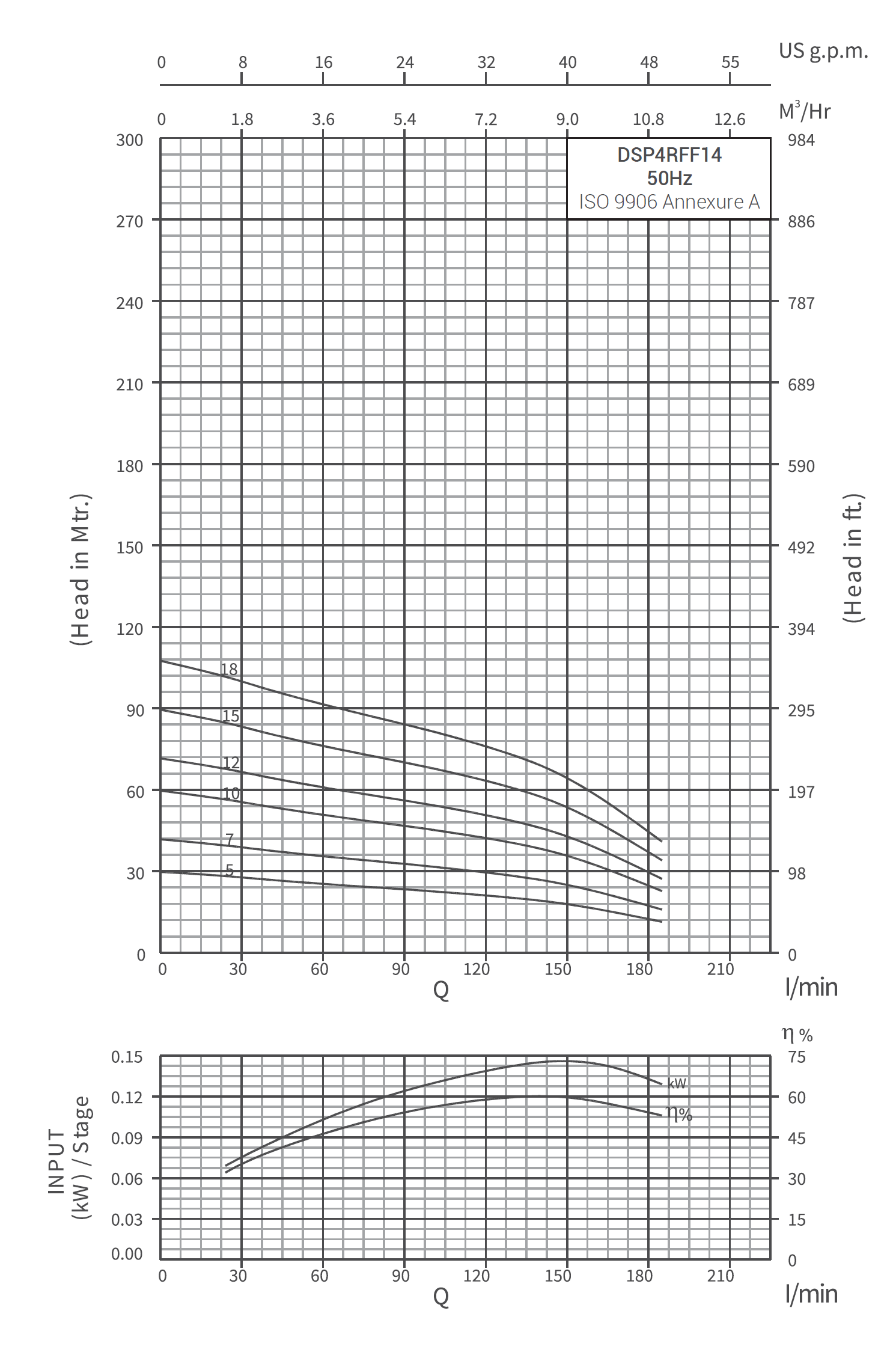

DSP4RFF14, 50HZ SERIES
MODEL IDENTIFICATION CODE
NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)
|
kW |
HP |
Stage |
Motor Joinings |
Outlet Size |
|
Discharge |
|||||
|
m3/h |
0 |
6 |
12 |
14 |
15 |
18 |
|||||
|
Ipm |
0 |
100 |
200 |
233 |
250 |
300 |
|||||
|
1.5 |
2 |
5 |
V-4 |
2" |
Head in Mtrs. |
33 |
31 |
26 |
23 |
21 |
13 |
|
2.2 |
3 |
7 |
V-4 |
2" |
46 |
43 |
36 |
32 |
29 |
18 |
|
|
3 |
4 |
10 |
V-4 |
2” |
66 |
62 |
51 |
46 |
41 |
26 |
|
|
4.5 |
6 |
13 |
V-4 |
2" |
86 |
81 |
66 |
60 |
53 |
34 |
|
|
5.5 |
7.5 |
18 |
V-4 |
2" |
119 |
112 |
92 |
83 |
74 |
47 |
|
|
Model Name |
Specification |
|||
|
D (mm) |
L (mm) |
Pump Weight Kg. |
Weight (incl. pkg.) Kg. |
|
|
DSP4RFF14 - 05 |
98 |
410 |
7.2 |
10.2 |
|
DSP4RFF14 - 07 |
98 |
494 |
7.7 |
10.7 |
|
DSP4RFF14 - 10 |
98 |
620 |
8.4 |
11.4 |
|
DSP4RFF14 - 12 |
98 |
704 |
8.9 |
11.9 |
|
DSP4RFF14 - 15 |
98 |
830 |
9.7 |
12.7 |
|
DSP4RFF14 - 18 |
98 |
956 |
10.5 |
13.5 |
G: Available Outlet Size BSP 2.0"
D: With Cable Guard
