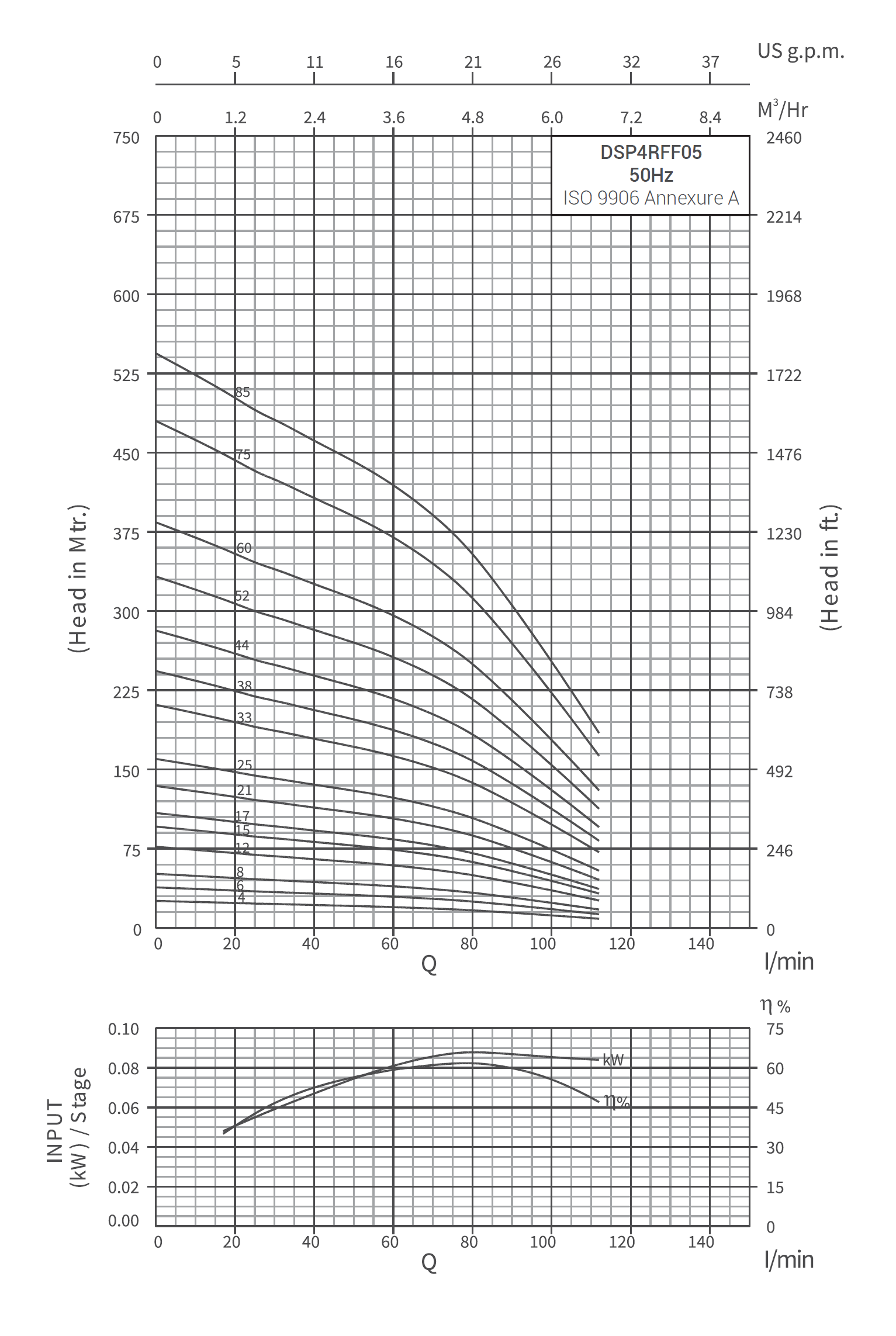

DSP4RFF05, 50HZ SERIES
MODEL IDENTIFICATION CODE
NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)
|
kW |
HP |
Stage |
Motor Joinings |
Outlet Size |
|
Discharge |
|||||
|
m3/h |
0 |
2.4 |
3.4 |
4 |
5 |
6 |
|||||
|
Ipm |
0 |
40 |
57 |
67 |
83 |
100 |
|||||
|
|
|||||||||||
|
0.37 |
0.5 |
4 |
V-4 |
1½" |
Head in Mtrs. |
24 |
21 |
20 |
19 |
16 |
12 |
|
0.55 |
0.75 |
6 |
V-4 |
1½" |
36 |
32 |
30 |
28 |
24 |
17 |
|
|
0.75 |
1 |
9 |
V-4 |
1½" |
48 |
42 |
40 |
38 |
32 |
23 |
|
|
1.1 |
1.5 |
12 |
V-4 |
1½" |
72 |
63 |
60 |
56 |
48 |
35 |
|
|
1.5 |
2 |
17 |
V-4 |
1½" |
102 |
89 |
85 |
80 |
68 |
49 |
|
|
2.2 |
3 |
21 |
V-4 |
1½" |
126 |
110 |
105 |
99 |
84 |
61 |
|
|
2.2 |
3 |
25 |
V-4 |
1½" |
150 |
131 |
125 |
118 |
100 |
73 |
|
|
3 |
4 |
33 |
V-4 |
1½" |
198 |
173 |
165 |
155 |
132 |
96 |
|
|
3.7 |
5 |
38 |
V-4 |
1½" |
228 |
200 |
190 |
179 |
152 |
110 |
|
|
4.5 |
6 |
44 |
V-4 |
1½" |
264 |
231 |
220 |
207 |
176 |
128 |
|
|
5.5 |
7.5 |
52 |
V-4 |
1½" |
312 |
273 |
260 |
244 |
208 |
151 |
|
|
5.5 |
7.5 |
60 |
V-4 |
1½" |
360 |
315 |
300 |
281 |
240 |
174 |
|
|
7.5 |
10 |
75 |
V-4 |
1½" |
450 |
394 |
375 |
351 |
300 |
217 |
|
|
7.5 |
10 |
85 |
V-4 |
1½" |
510 |
446 |
425 |
398 |
340 |
246 |
|
|
Model Name |
Specification |
|||
|
D (mm) |
L (mm) |
Pump Weight Kg. |
Weight (incl. pkg.) Kg. |
|
|
DSP4RFF05 -04 |
98 |
238 |
3.2 |
3.4 |
|
DSP4RFF05 -06 |
98 |
280 |
3.6 |
3.9 |
|
DSP4RFF05 -08 |
98 |
322 |
4.0 |
4.4 |
|
DSP4RFF05 -12 |
98 |
406 |
5.6 |
6.2 |
|
DSP4RFF05 -15 |
98 |
469 |
6.6 |
7.4 |
|
DSP4RFF05 -17 |
98 |
511 |
7.0 |
7.9 |
|
DSP4RFF05 -21 |
98 |
626 |
8.4 |
9.5 |
|
DSP4RFF05 -25 |
98 |
710 |
9.7 |
11.0 |
|
DSP4RFF05 -33 |
98 |
878 |
12.5 |
14.2 |
|
DSP4RFF05 -38 |
98 |
1169 |
13.0 |
14.7 |
|
DSP4RFF05 -44 |
98 |
1344 |
14.0 |
16.0 |
|
DSP4RFF05 -52 |
98 |
1536 |
16.3 |
18.6 |
|
DSP4RFF05 -60 |
119 |
1820 |
27.0 |
29.4 |
|
DSP4RFF05 -75 |
144 |
2423 |
43.5 |
46.1 |
|
DSP4RFF05 -85 |
144 |
2694 |
47.5 |
50.5 |
G: Available Outlet Size 1.5" BSP D: With Cable Guard
DP5 - 52 and DP5 - 60 pump available in 6" Joining
DP5 - 75 and DP5 - 85 pump available in 6" Joining with mounted sleeve.
