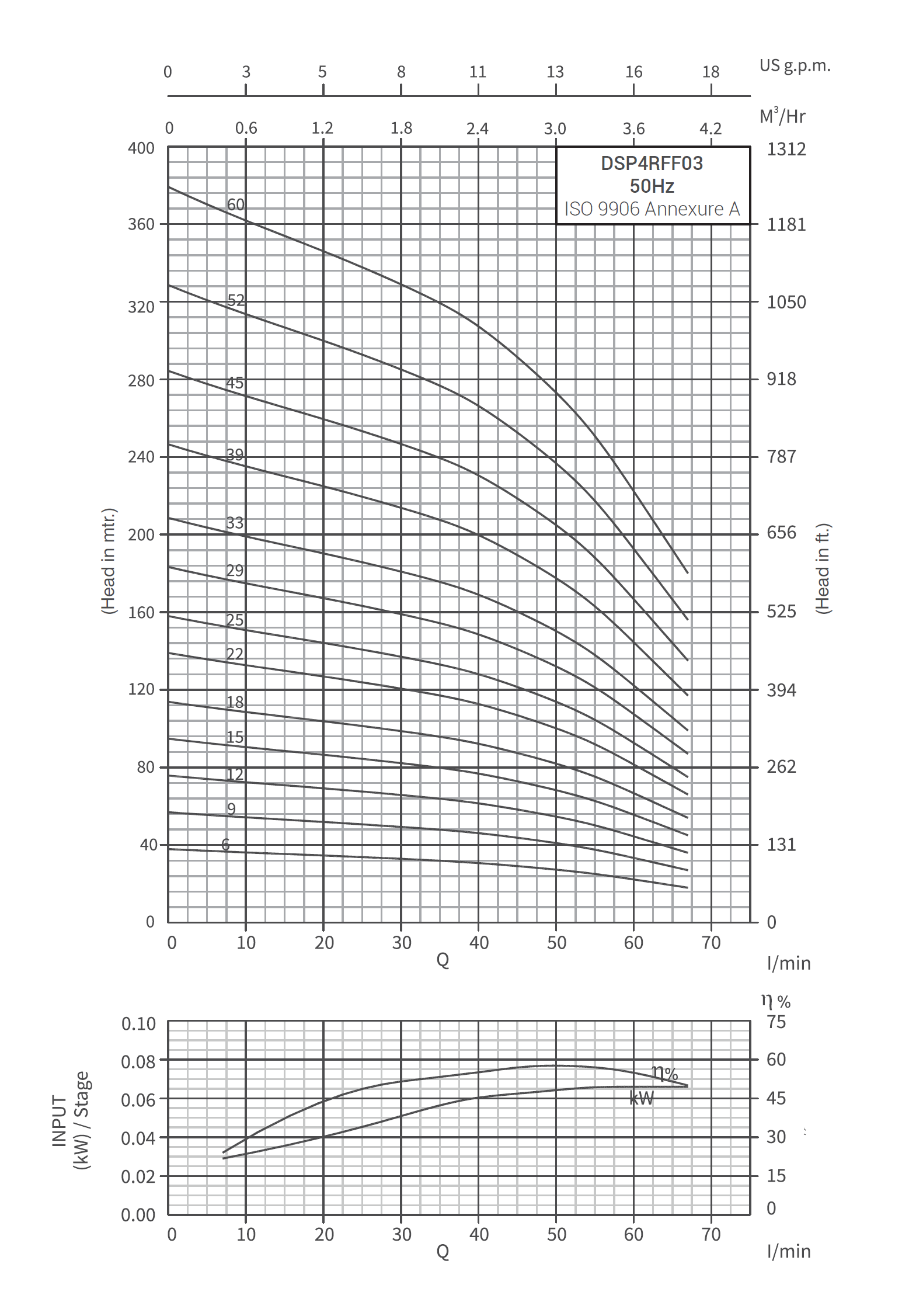

DSP4RFF03, 50HZ SERIES
MODEL IDENTIFICATION CODE
NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)
|
kW |
HP |
Stage |
Motor Joinings |
Outlet Size |
|
Discharge |
||||||
|
m3/h |
0 |
1.8 |
2.4 |
3 |
3.6 |
4 |
||||||
|
Ipm |
0 |
30 |
40 |
50 |
60 |
67 |
||||||
|
|
|
|
|
|
||||||||
|
|
||||||||||||
|
0.37 |
0.5 |
6 |
V-4 |
1½" |
Head in Mtrs. |
36 |
32 |
30 |
26 |
20 |
16 |
|
|
0.55 |
0.75 |
9 |
V-4 |
1½" |
54 |
49 |
45 |
39 |
31 |
23 |
||
|
0.75 |
1 |
12 |
V-4 |
1½" |
72 |
65 |
60 |
52 |
41 |
31 |
||
|
1.1 |
1.5 |
15 |
V-4 |
1½" |
90 |
81 |
75 |
65 |
51 |
39 |
||
|
1.1 |
1.5 |
18 |
V-4 |
1½" |
108 |
97 |
90 |
78 |
61 |
47 |
||
|
1.5 |
2 |
22 |
V-4 |
1½" |
132 |
119 |
110 |
96 |
75 |
57 |
||
|
1.5 |
2 |
25 |
V-4 |
1½" |
150 |
135 |
125 |
109 |
85 |
65 |
||
|
2.2 |
3 |
29 |
V-4 |
1½" |
174 |
157 |
145 |
126 |
99 |
75 |
||
|
2.2 |
3 |
33 |
V-4 |
1½" |
198 |
178 |
165 |
144 |
112 |
86 |
||
|
3 |
4 |
39 |
V-4 |
1½" |
234 |
211 |
195 |
170 |
133 |
101 |
||
|
3 |
4 |
45 |
V-4 |
1½" |
270 |
243 |
225 |
196 |
153 |
117 |
||
|
3.7 |
5 |
52 |
V-4 |
1½" |
312 |
281 |
260 |
226 |
177 |
135 |
||
|
3.7 |
5 |
60 |
V-4 |
1½" |
360 |
324 |
300 |
260 |
204 |
155 |
||
|
Model Name |
Specification |
|||
|
D (mm) |
L (mm) |
Pump Weight Kg. |
Weight (incl. pkg.) Kg. |
|
|
DSP4RFF03 -06 |
98 |
280 |
3.4 |
4.0 |
|
DSP4RFF03 -09 |
98 |
343 |
4.4 |
5.3 |
|
DSP4RFF03 -12 |
98 |
406 |
5.4 |
6.6 |
|
DSP4RFF03 -15 |
98 |
469 |
6.4 |
7.9 |
|
DSP4RFF03 -18 |
98 |
532 |
7.4 |
9.2 |
|
DSP4RFF03 -22 |
98 |
647 |
8.7 |
10.9 |
|
DSP4RFF03 -25 |
98 |
710 |
9.7 |
12.2 |
|
DSP4RFF03 -29 |
98 |
794 |
10.9 |
13.8 |
|
DSP4RFF03 -33 |
98 |
878 |
12.2 |
15.5 |
|
DSP4RFF03 -39 |
98 |
1076 |
12.7 |
16.6 |
|
DSP4RFF03 -45 |
98 |
1233 |
14.0 |
18.5 |
|
DSP4RFF03 -52 |
98 |
1380 |
15.5 |
20.7 |
|
DSP4RFF03 -60 |
98 |
1548 |
17.3 |
23.3 |
G: Available Outlet Size 1.25" BSP
D: With Cable Guard
