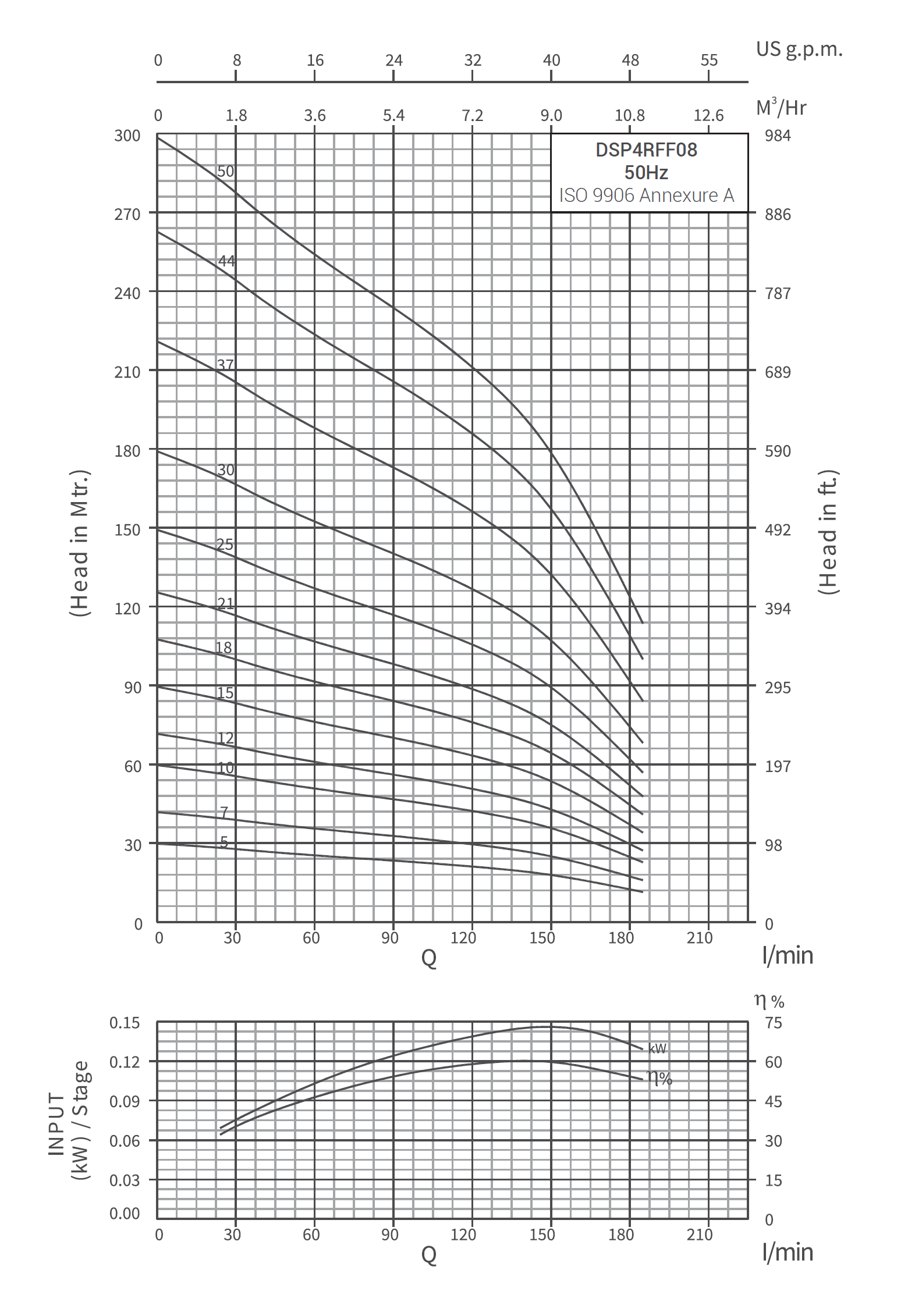

DSP4RFF08, 50HZ SERIES
MODEL IDENTIFICATION CODE
NOMINAL MOTOR DIA : 4”,6”,8”,10”,12”
SERIES: (02/03/05/08/14/09/17/30/46/60/77/95/125/160/215)
|
kW |
HP |
Stage |
Motor Joinings |
Outlet Size |
|
Discharge |
|||||
|
m3/h |
0 |
4 |
6 |
8 |
9 |
10 |
|||||
|
Ipm |
0 |
67 |
100 |
133 |
150 |
167 |
|||||
|
0.75 |
1 |
5 |
V-4 |
2" |
Head in Mtrs. |
30 |
24 |
23 |
20 |
18 |
14 |
|
1.1 |
1.5 |
7 |
V-4 |
2" |
42 |
34 |
32 |
28 |
25 |
20 |
|
|
1.5 |
2 |
10 |
V-4 |
2" |
60 |
48 |
45 |
40 |
36 |
28 |
|
|
2.2 |
3 |
12 |
V-4 |
2" |
72 |
58 |
54 |
48 |
43 |
34 |
|
|
2.2 |
3 |
15 |
V-4 |
2" |
90 |
72 |
68 |
60 |
54 |
42 |
|
|
3 |
4 |
18 |
V-4 |
2" |
108 |
86 |
81 |
72 |
65 |
50 |
|
|
3.7 |
5 |
21 |
V-4 |
2" |
126 |
101 |
95 |
84 |
76 |
59 |
|
|
4.5 |
6 |
25 |
V-4 |
2" |
150 |
120 |
113 |
100 |
90 |
70 |
|
|
5.5 |
7.5 |
30 |
V-4 |
2" |
180 |
144 |
135 |
120 |
108 |
84 |
|
|
5.5 |
7.5 |
37 |
V-4 |
2" |
222 |
178 |
167 |
148 |
133 |
104 |
|
|
7.5 |
10 |
44 |
V-4 |
2” |
264 |
211 |
198 |
176 |
158 |
123 |
|
|
7.5 |
10 |
50 |
V-4 |
2” |
300 |
240 |
225 |
200 |
179 |
140 |
|
|
Model Name |
Specification |
|||
|
D (mm) |
L (mm) |
Pump Weight Kg. |
Weight (incl. pkg.) Kg. |
|
|
DSP4RFF08 -05 |
98 |
410 |
7.2 |
10.2 |
|
DSP4RFF08 -07 |
98 |
494 |
7.7 |
10.7 |
|
DSP4RFF08 -10 |
98 |
620 |
8.4 |
11.4 |
|
DSP4RFF08 -12 |
98 |
704 |
8.9 |
11.9 |
|
DSP4RFF08 -15 |
98 |
830 |
9.7 |
12.7 |
|
DSP4RFF08 -18 |
98 |
956 |
10.5 |
13.5 |
|
DSP4RFF08 -21 |
98 |
1082 |
11.2 |
14.2 |
|
DSP4RFF08 -25 |
98 |
1250 |
12.3 |
15.3 |
|
DSP4RFF08 -30 |
98 |
1460 |
13.5 |
16.5 |
|
DSP4RFF08 -37 |
98 |
1754 |
15.3 |
18.3 |
|
DSP4RFF08 -44 |
98 |
2048 |
17.1 |
20.1 |
|
DSP4RFF08 -50 |
98 |
2300 |
18.8 |
21.8 |
G: Available Outlet Size BSP 2.0"
D: With Cable Guard DP8 -30, DP8 -37, DP8A-44 & DP8-50
pump are also available in 6" Joining.
DP8 -58, DP8 -66, DP8 -73, DP8 -82,
DP8 -91, DP8 -100 & DP8 -110 pump are
also available in 6" Joining with mounted sleeve.
